SKU: ZUC207-20FG-SNR

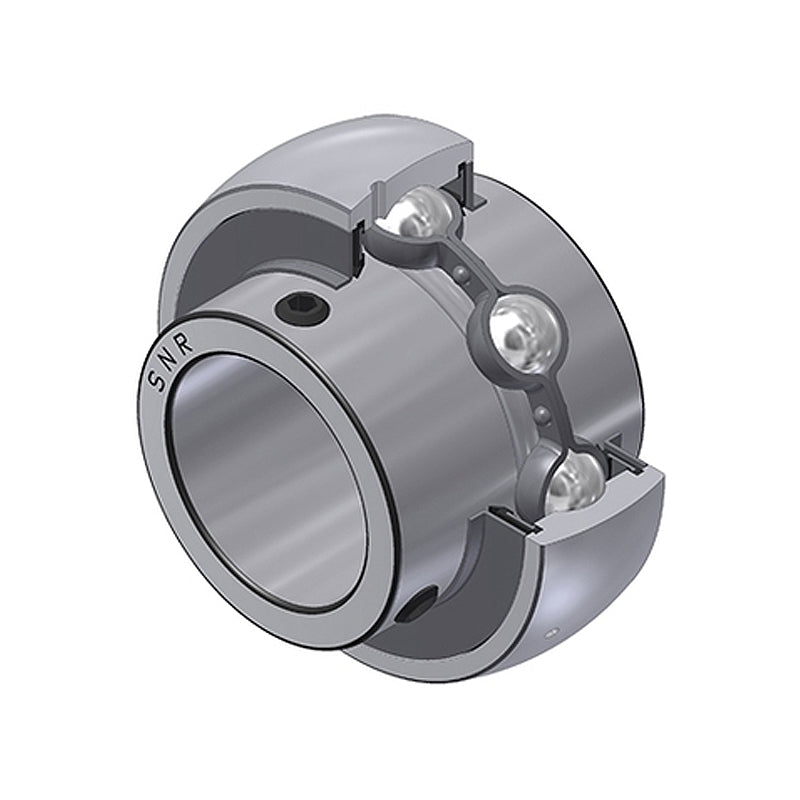

SNR ZUC207-20FG Imperial Full Width Spherical Outer Food Safe Bearing Insert 1-1/4 inch Bore 72mm Outside Diameter with Grub Screws - Allow 2-3 Days
Out of stock
Share this product
Description
SNR ZUC-FG Full Width Spherical Outer Bearing Insert with Grub Screws: This bearing insert offers a reliable solution for food applications where direct contact with foodstuffs is not required. Each steel insert is equipped with a single lip seal and slinger on both sides and features a wide inner ring design. It is zinc-coated and filled with food-grade grease, providing a cost-effective alternative for food applications. Additionally, it provides additional protection against particles and is suitable for medium to high rotation speeds, ensuring dependable performance in various food-related environments.
Benefits: High-quality brand, high-performance, precision-engineered
- Brand / Quality:
- SNR - High Quality
- Thread Size:
- 5/16-24UNF
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Outside Diameter:
- 72mm
- Width:
- 42.9mm
- Style:
- ZUC
Technical
| d | 1-1/4 inch |
|---|---|
| d | 31.75mm |
| D | 72mm |
| C | 20mm |
| B | 42.9mm |
| S | 17.5mm |
| m | 6.5mm |
| C1 | 5.8mm |
| r min | 1.1mm |
| G | 5/16-24UNF |
| Wrench Size | 5/32 inch |
| Set screw torque | 8 Nm |
| Min Temp | -20 deg C |
| Max Temp | 100 deg C |
| Dynamic load rating C | 25.8kN |
| Static load rating C0 | 15.2kN |
| Weight | 0.5kg |
