SKU: XGA33210/YSA33210R-TIM

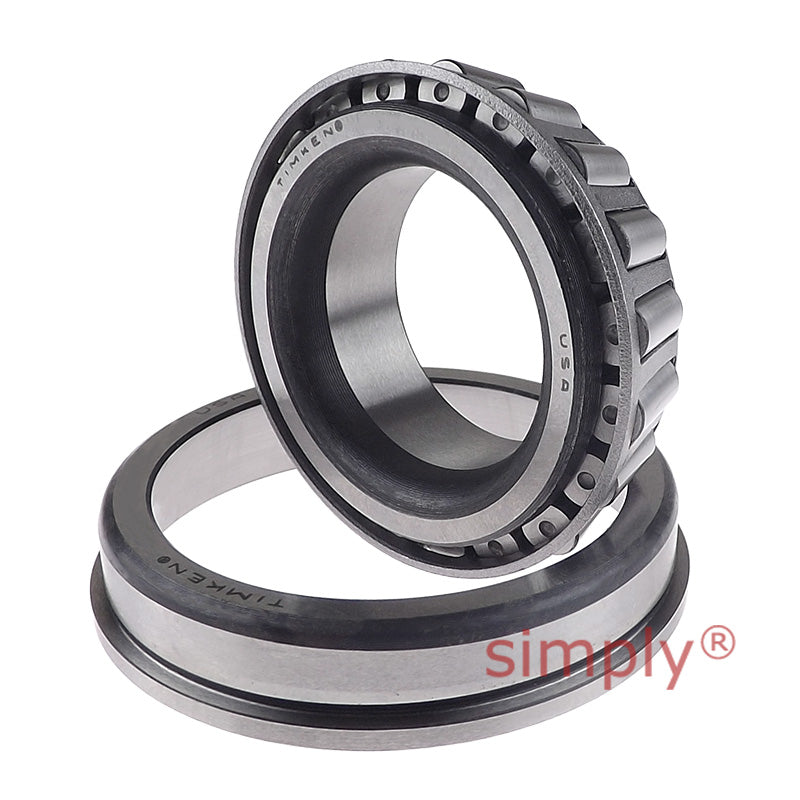

Timken XGA33210/YSA33210R TSF Single-Row Taper Roller Bearing 1.5748x3.7402x1.2598 inch
Timken XGA33210/YSA33210R TSF Single-Row Taper Roller Bearing 1.5748x3.7402x1.2598 inch
Out of stock
Description
Description
Timken Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 95mm
- Width:
- 32mm
Technical
Technical
| d | 40mm = 1.5748 inch |
|---|---|
| D | 95mm = 3.7402 inch |
| T1 | 10mm = 0.3937 inch |
| Dynamic (1) C1 | 120000N |
| Factors (5) e | 0.41 |
| Factors (5) Y | 1.45 |
| Dynamic (2) C90 | 31200N |
| Dynamic (2) Ca90 | 22100N |
| Factors (5) K | 1.41 |
| Static Co | 166000N |
| Bearing B | 32mm = 1.2598 inch |
| Bearing C | 27mm = 1.063 inch |
| Bearing a(3) | -8.6mm = -0.34 inch |
| Bearing D1 | 102mm = 4.0157 inch |
| Bearing C2 | 5mm = 0.1968 inch |
| Shaft max shaft fillet radius R(4) | 1.5mm = 0.06 inch |
| Shaft backing shoulder diameter da | 54mm = 2.13 inch |
| Shaft backing shoulder diameter db | 56mm = 2.2 inch |
| Housing backing shoulder diameter Da | 89mm = 3.5 inch |
| G1 | 48.4 |
| G2 | 15.3 |
| Cg | 0.0957 |
