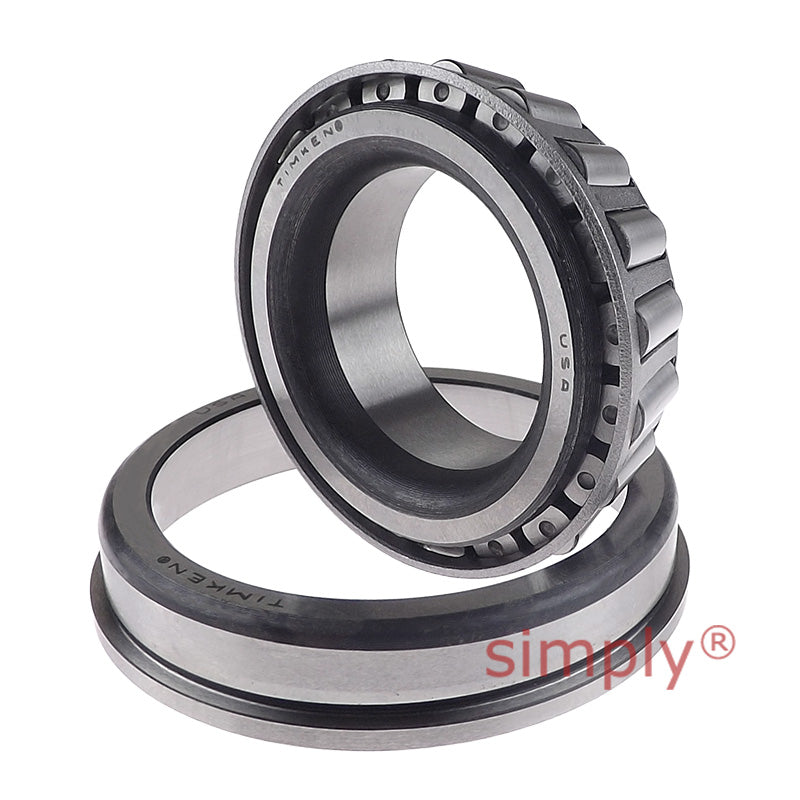

Timken X33109/Y33109R TSF Single-Row Taper Roller Bearing 1.7717x3.1496x1.0263 inch
Timken X33109/Y33109R TSF Single-Row Taper Roller Bearing 1.7717x3.1496x1.0263 inch
Out of stock
Description
Description
Timken Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 80mm
- Width:
- 26mm
Technical
Technical
| d | 45mm = 1.7717 inch |
|---|---|
| D | 80mm = 3.1496 inch |
| T1 | 10mm = 0.3937 inch |
| Dynamic (1) C1 | 88000N |
| Factors (5) e | 0.38 |
| Factors (5) Y | 1.57 |
| Dynamic (2) C90 | 22800N |
| Dynamic (2) Ca90 | 15000N |
| Factors (5) K | 1.52 |
| Static Co | 119000N |
| Bearing B | 26mm = 1.0236 inch |
| Bearing C | 20.5mm = 0.8071 inch |
| Bearing a(3) | -6.6mm = -0.26 inch |
| Bearing D1 | 85mm = 3.3465 inch |
| Bearing C2 | 4.5mm = 0.1772 inch |
| Shaft max shaft fillet radius R(4) | 1.5mm = 0.06 inch |
| Shaft backing shoulder diameter da | 52mm = 2.05 inch |
| Shaft backing shoulder diameter db | 55mm = 2.17 inch |
| Housing backing shoulder diameter Da | 79mm = 3.11 inch |
| G1 | 35.7 |
| G2 | 14.5 |
| Cg | 0.0843 |
