SKU: WMX.859030

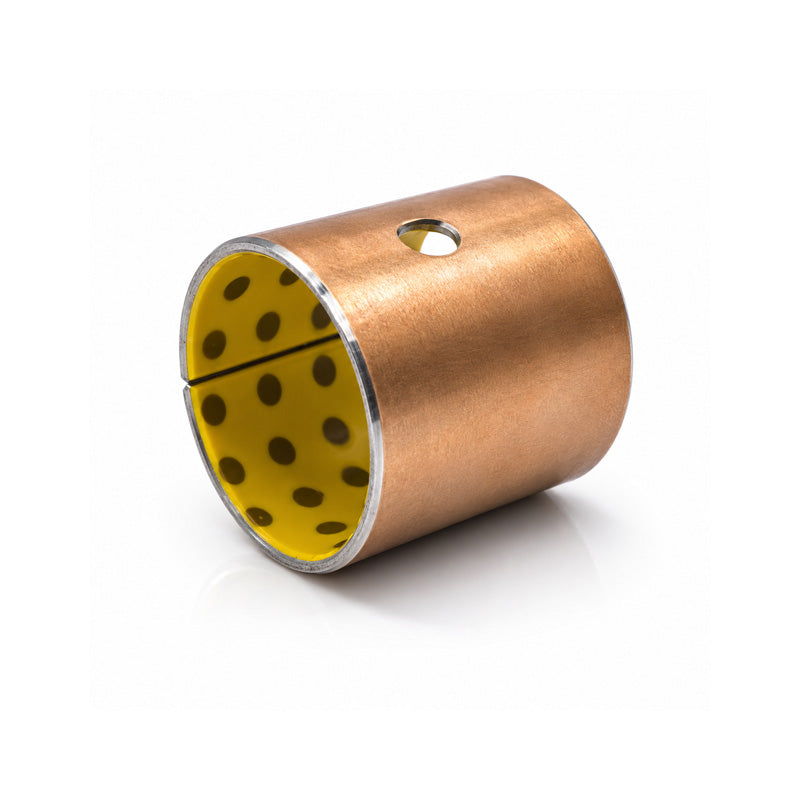

WMX859030 Metric Wrapped Acetal Lined Plain Bush 85x90x30mm
WMX859030 Metric Wrapped Acetal Lined Plain Bush 85x90x30mm
Regular price
$7.36
ex VAT
Regular price
Sale price
$7.36
ex VAT
In stock
Price Break
10+
$5.45
20+
$5.23
50+
$5.12
100+
$4.96
500+
$4.85
1000+
$4.57
Quantity
Couldn't load pickup availability
Description
Description
Wrapped Acetal Lined Plain Bushes: These bushes are high-performance, self-lubricating bearings designed for applications requiring low friction and maintenance-free operation. The WMX range is ideal for the automotive, machine building and agricultural industries, as well as any application where lubricant cannot be supplied continuously.
Benefits: Low friction, wear resistant, high load capacity
- Brand / Quality:
- Simply Plastic Bushes - High Quality
- Inside Diameter:
- 85mm
- Outside Diameter:
- 90mm
- Length:
- 30mm
Technical
Technical
| Inside Diameter (d) | 85mm |
|---|---|
| Outside Diameter (D) | 90mm |
| Length (B) | 30mm |
| Overall Length Tolerance | 29.75mm min to 30.25mm max |
| Recommended Housing Size Tolerance | 90mm min to 90.035mm max H7 |
| Shaft Diameter Tolerance | 84.946mm min to 85mm max |
| Inside Diameter when Fitted Tolerance | 85.1mm min to 85.267mm max |
| Inside Chamfers Tolerance | 0.2mm min to 1mm max |
| Outside Chamfers Tolerance | 1.2mm min to 2.4mm max |
| Max PV | 2.8 N/mm squared x m/s |
| Max Static Load | 70 N/mm squared |
| Max Dynamic Load | 70 N/mm squared |
| Max Sliding Speed -With Grease | 2.5 m/s |
| Operating Temperature | -40 to 110 Deg C |
| Thermal Conductivity | 2 W/mk |
| Coefficient of Friction - With Grease | 0.05 to 0.15 |
| Recommended Shaft Hardness | 200 min HB |
