SKU: WMX.455020

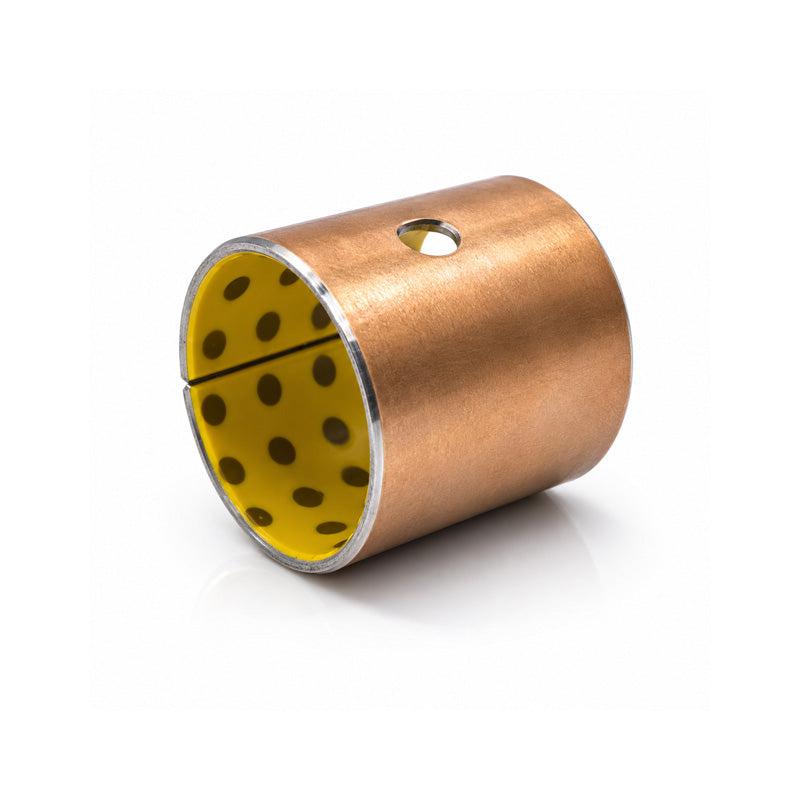

WMX455020 Metric Wrapped Acetal Lined Plain Bush 45x50x20mm
WMX455020 Metric Wrapped Acetal Lined Plain Bush 45x50x20mm
Regular price
$4.46
ex VAT
Regular price
Sale price
$4.46
ex VAT
In stock
Price Break
10+
$2.34
20+
$2.00
50+
$1.84
100+
$1.67
500+
$1.34
1000+
$1.17
Quantity
Couldn't load pickup availability
Description
Description
Wrapped Acetal Lined Plain Bushes: These bushes are high-performance, self-lubricating bearings designed for applications requiring low friction and maintenance-free operation. The WMX range is ideal for the automotive, machine building and agricultural industries, as well as any application where lubricant cannot be supplied continuously.
Benefits: Low friction, wear resistant, high load capacity
- Brand / Quality:
- Simply Plastic Bushes - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 50mm
- Length:
- 20mm
Technical
Technical
| Inside Diameter (d) | 45mm |
|---|---|
| Outside Diameter (D) | 50mm |
| Length (B) | 20mm |
| Overall Length Tolerance | 19.75mm min to 20.25mm max |
| Recommended Housing Size Tolerance | 50mm min to 50.025mm max H7 |
| Shaft Diameter Tolerance | 44.961mm min to 45mm max |
| Inside Diameter when Fitted Tolerance | 45.08mm min to 45.195mm max |
| Inside Chamfers Tolerance | 0.2mm min to 1mm max |
| Outside Chamfers Tolerance | 1.2mm min to 2.4mm max |
| Max PV | 2.8 N/mm squared x m/s |
| Max Static Load | 70 N/mm squared |
| Max Dynamic Load | 70 N/mm squared |
| Max Sliding Speed -With Grease | 2.5 m/s |
| Operating Temperature | -40 to 110 Deg C |
| Thermal Conductivity | 2 W/mk |
| Coefficient of Friction - With Grease | 0.05 to 0.15 |
| Recommended Shaft Hardness | 200 min HB |
