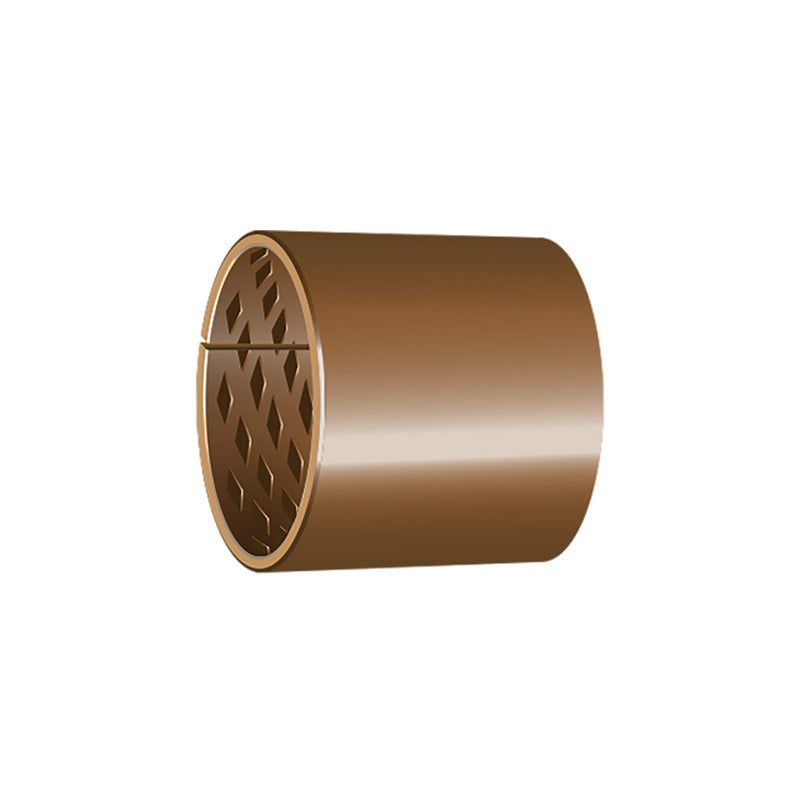

• WMB505540 Metric Wrapped Bronze Plain Bush 50x55x40mm
1 1

SKU: WMB.505540

WMB505540 Metric Wrapped Bronze Plain Bush 50x55x40mm

WMB505540 Metric Wrapped Bronze Plain Bush 50x55x40mm
$17.68 ex VAT
$17.68 ex VAT
Sale Sold out

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Wrapped Bronze Plain Bushes These bushes are wrapped in homogenous bronze. These bushes are capable of high levels of thermal conductivity, high load capacities and also they have chemical resistance. Due to the slit along the length of the bush, they are very easy to install. Also, the through holes allow for easy lubrication.
Benefits: Easy installation, high load capacity, excellent wear resistance with lower friction.

Technical
Inside Diameter (d) 50mm
Outside Diameter (D) 55mm
Length (B) 40mm
Length Min 39.75mm
Length Max 40.25mm
PV 2.8 max N/mm squared x m/s
Dynamic Load 40 max N/mm squared
Intermittent Temperature 130 max Deg C
Thermal Conductivity 60 W/mk
Hardness 90-120 HB
Yield Point 250 min N/mm squared
Static Load 120 max N/mm squared
Sliding speed - With Grease 2.5 max m/s
Operating Temperature -100 to 200 Deg C
Coefficient of Friction 0.08 to 0.25
Tensile Strength 450 min N/mm squared
Elongation 40 Percent
Recommended Housing Size Min 55mm
Recommended Housing Size Max 55.025mm
Shaft Diameter Min 49.95mm
Shaft Diameter Max 49.975mm
Inside Diameter When Fitted Min 50mm
Inside Diameter When Fitted Max 50.062mm
