SKU: WJC101208

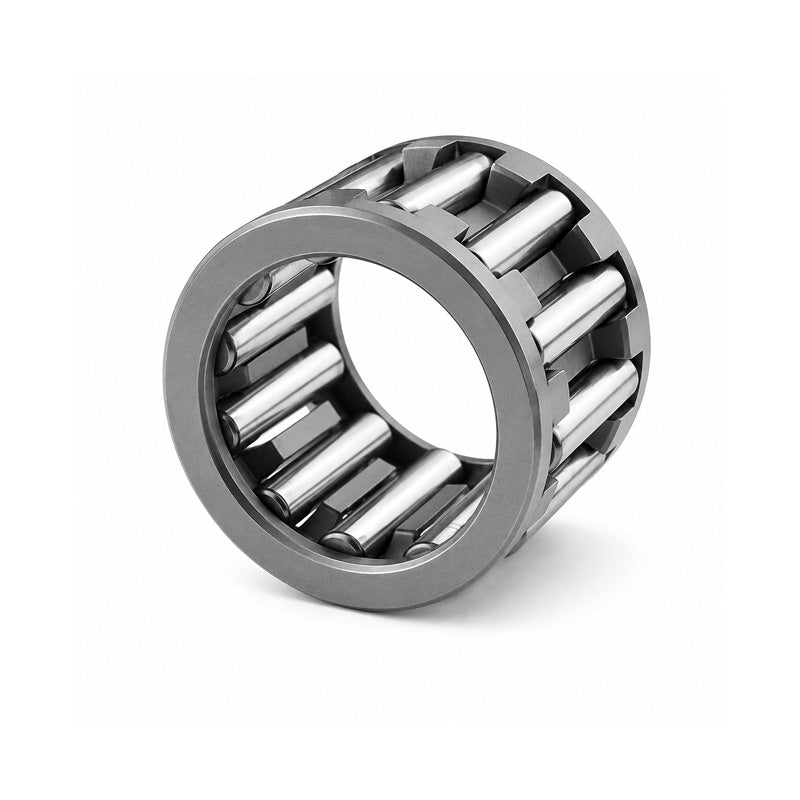

WJC101208 Imperial Needle Roller Cage 5/8x3/4x1/2 inch
WJC101208 Imperial Needle Roller Cage 5/8x3/4x1/2 inch
Out of stock
Description
Description
|
Needle Roller Cage Assemblies: A ready to mount, self contained bearing component, they enable bearing arrangements with a high load carrying capacity and stiffness yet only requiring a minimal amount of radial space if the shaft and housing serve as raceways. Generally made with steel cages with no specific maximum temperature or when suffixed with TN a glass fibre reinforced polyamide cage material having a maximum operating temperature 120 deg C Benefits: Low cost bearing solution, minimal radial space requirements, high running accuracy. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15.88mm = 0.625 (5/8) inch
- Outside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Width:
- 12.7mm = 0.5 (1/2) inch
Technical
Technical
| Fw | 15.88mm = 5/8 inch |
|---|---|
| Ew | 19.05mm = 3/4 inch |
| U | 12.70mm = 1/2 inch |
