SKU: UKT318D1/HA2318X-NTN

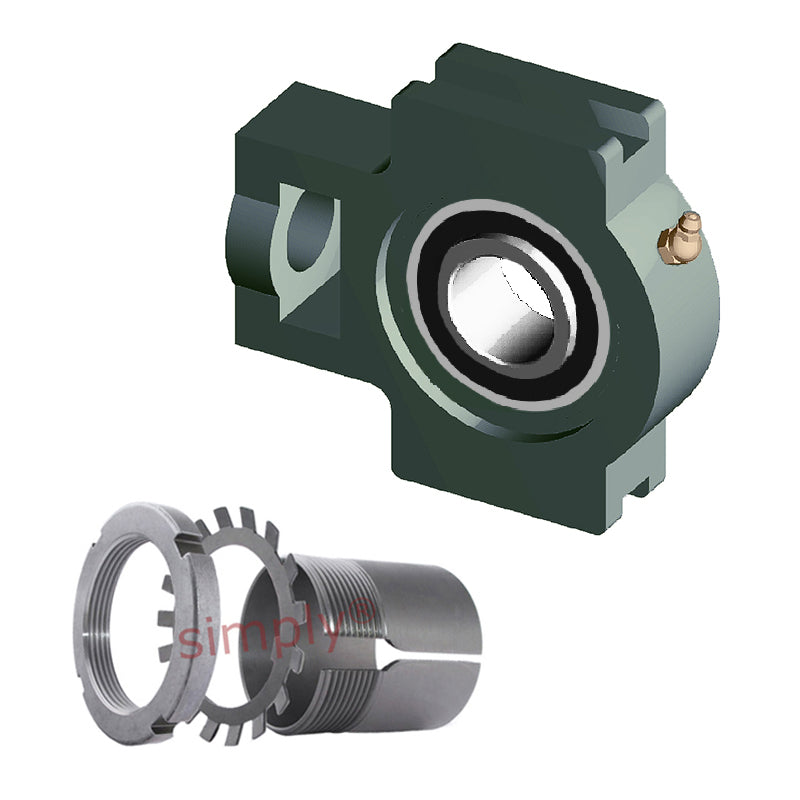

NTN UKT318D1/HA2318X Imperial Cast Iron Take Up Unit Insert and Adaptor Sleeve Fits 3-3/16 inch Shaft - Allow 2-3 Days
NTN UKT318D1/HA2318X Imperial Cast Iron Take Up Unit Insert and Adaptor Sleeve Fits 3-3/16 inch Shaft - Allow 2-3 Days
Out of stock
Description
Description
UKT300 Series Heavy Duty Take-Up Unit with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 80.96mm = 3.187 (3-3/16) inch
- Style:
- UKT
Technical
Technical
| Shaft diameter | 3-3/16 inch |
|---|---|
| N<sub>1</sub> | 1-13/16 inch |
| L<sub>2</sub> | 1-1/4 inch |
| H<sub>2</sub> | 6-5/16 inch |
| N<sub>2</sub> | 4-3/16 inch |
| N | 2-1/4 inch |
| L<sub>3</sub> | 6-7/8 inch |
| A<sub>1</sub> | 1.26 inch |
| H<sub>1</sub> | 8-31/32 inch |
| H | 10-1/32 inch |
| L | 12-9/32 inch |
| A<sub>2</sub> | 2-19/32 inch |
| A | 4-11/32 inch |
| r | 4-23/32 inch |
| L<sub>1</sub> | 7-9/16 inch |
| B<sub>1</sub> | 3.386 inch |
| Mass | 46 lbs |
