SKU: UKT210/H2310

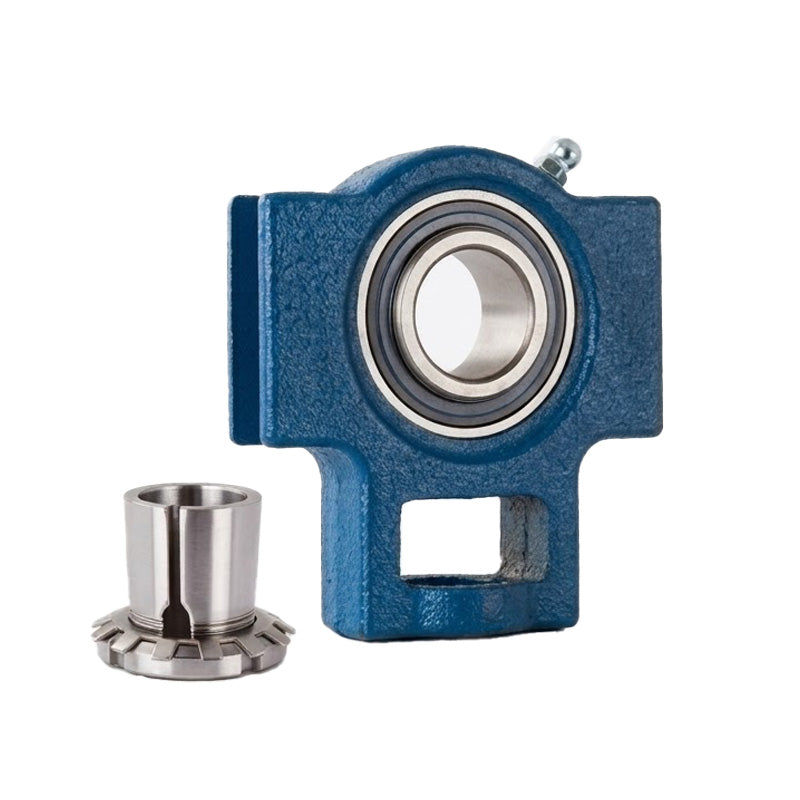

UKT210/H2310 Metric Cast Iron Take Up Unit Housing Insert and Adaptor Sleeve Fits 45mm Shaft
UKT210/H2310 Metric Cast Iron Take Up Unit Housing Insert and Adaptor Sleeve Fits 45mm Shaft
Out of stock
Share this product
Description
Description
UKT200 Series Normal Duty Take Up Units with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Style:
- UKT

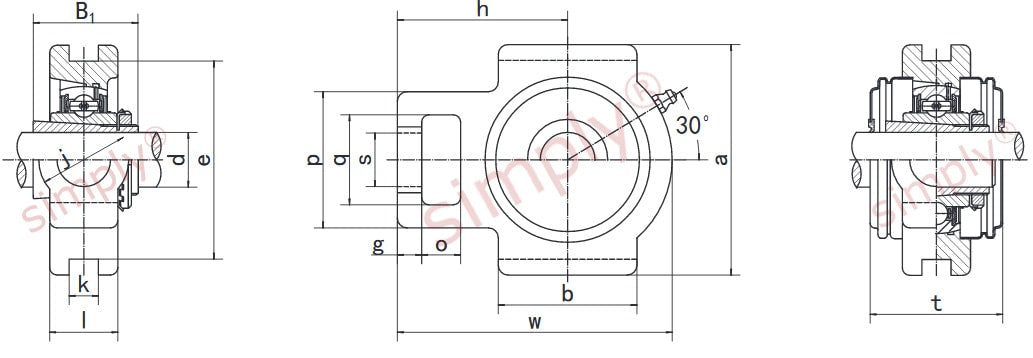

Technical
Technical
| d | 45mm |
|---|---|
| o | 19mm |
| g | 16mm |
| p | 83mm |
| q | 49mm |
| s | 29mm |
| b | 86mm |
| k | 16mm |
| e | 102mm |
| a | 117mm |
| w | 149mm |
| j | 49mm |
| l | 37mm |
| h | 90mm |
| t | 74.5mm |
| B1 | 55mm |
| Bearing no | UK210;H2310 |
| Housing no | T210 |
| Weight | 2.6 kg |
