SKU: UKC313D1/HS2313X-NTN

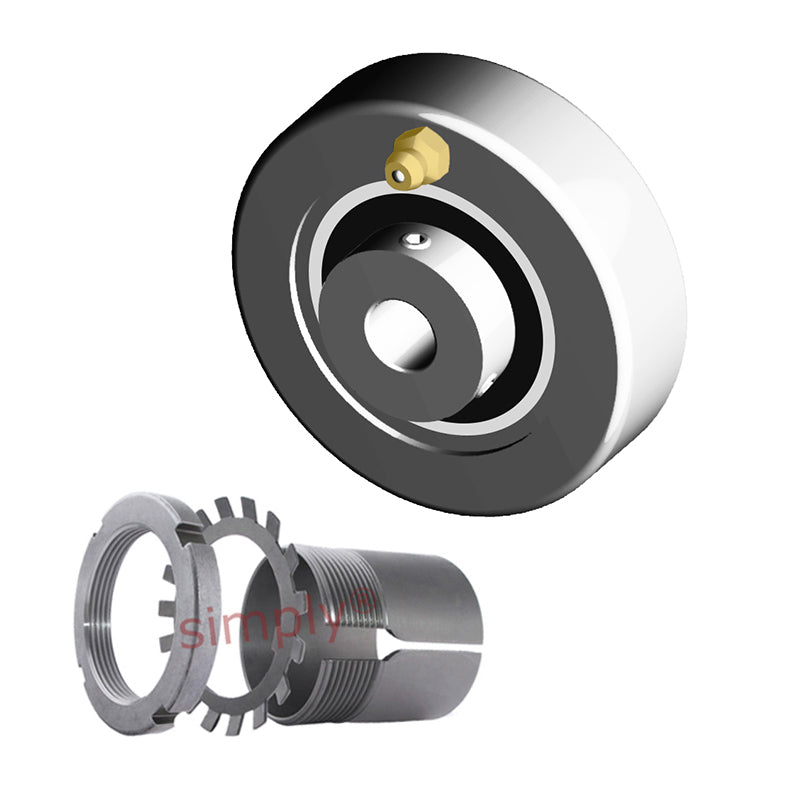

NTN UKC313D1/HS2313X Imperial Cast Iron Cartridge Unit with Adaptor Sleeve Mounted and 2-3/8 inch Bore Insert 6.6929 inch Outside Dia - Allow 2-3 Days
NTN UKC313D1/HS2313X Imperial Cast Iron Cartridge Unit with Adaptor Sleeve Mounted and 2-3/8 inch Bore Insert 6.6929 inch Outside Dia - Allow 2-3 Days
Out of stock
Share this product
Description
Description
UKC Series (Medium Duty) Cartridge Bearing Unit with Adaptor Sleeve Mounted: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, full width insert
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 60.33mm = 2.375 (2-3/8) inch
- Style:
- UKC
Technical
Technical

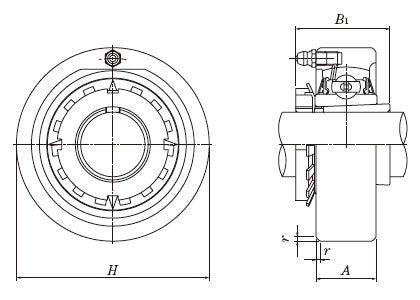

| Shaft diameter | 2-3/8 inch |
|---|---|
| H | 6.6929 inch |
| A | 1-31/32 inch |
| r | 0.138 inch |
| B<sub>1</sub> | 2.559 inch |
| Mass | 12 lbs |
