SKU: UELFC214D1W3-NTN

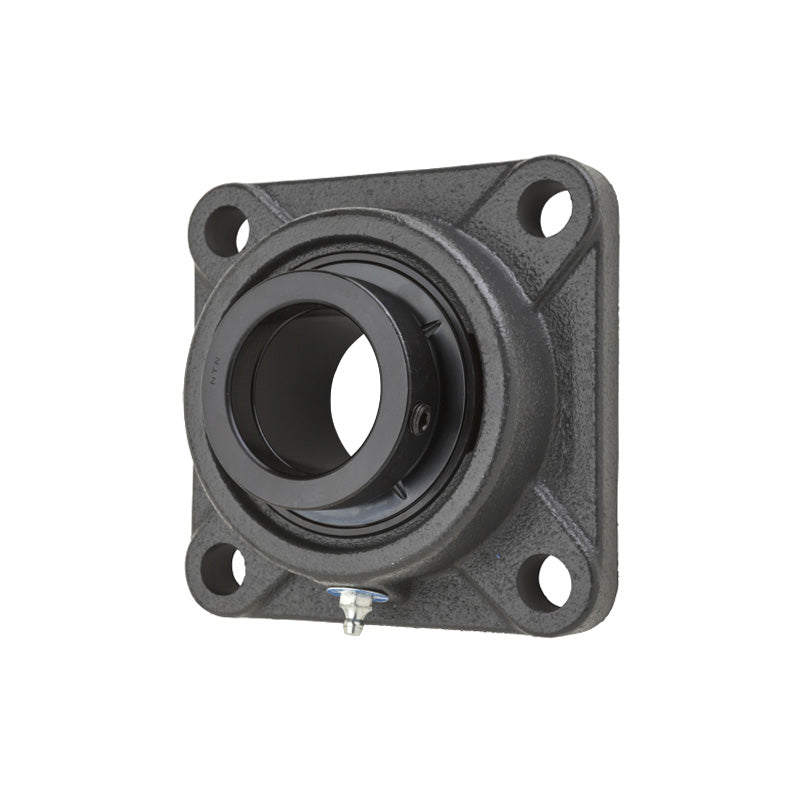

NTN UELFC214D1W3 Metric Four Bolt Cast Iron Round Flanged Housing with 70mm Eccentric Collar Insert - Allow 2-3 Days
NTN UELFC214D1W3 Metric Four Bolt Cast Iron Round Flanged Housing with 70mm Eccentric Collar Insert - Allow 2-3 Days
Out of stock
Share this product
Description
Description
UELFC200 Series 4 Bolt Cast Iron Round Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar/grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 70mm
- Style:
- UELFC
- Pitch Circle Diameter:
- 125.2mm
Technical
Technical
| Shaft diameter | 70mm |
|---|---|
| L | 215mm |
| J | 177mm |
| (J<sub>1</sub> | 125.2mm |
| A<sub>2</sub> | 17mm |
| N | 19mm |
| A<sub>3</sub> | 14mm |
| A<sub>1</sub> | 40mm |
| A | 54mm |
| H<sub>3</sub> | 150mm |
| A<sub>0</sub> | 82.55mm |
| B<sub>1</sub> | 85.7mm |
| S | 34.15mm |
| F min. | 94mm |
| Fixing bolt | M16 |
| Mass | 7.4 kg |
