SKU: UCX.17-52

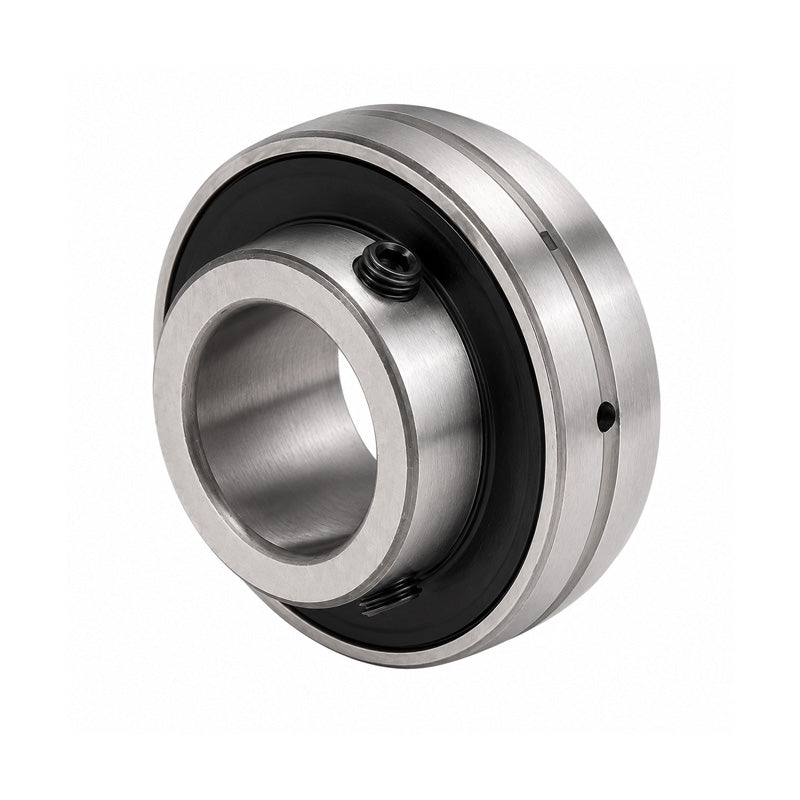

UCX17-52 Imperial Bearing Insert with 3-1/4 inch Bore 160mm Outside Dia
UCX17-52 Imperial Bearing Insert with 3-1/4 inch Bore 160mm Outside Dia
Out of stock
Description
Description
|
UCX or MP Series: Bearing insert with 2 grub screws to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 82.55mm = 3.25 (3-1/4) inch
- Outside Diameter:
- 160mm
- Style:
- UCX
Technical
Technical
| d | 3-1/4 inch |
|---|---|
| D | 160mm |
| Bi | 96mm |
| Be | 36mm |
| n | 39.7mm |
| m | 56.3mm |
| G | 15mm |
| Grub screw | 1/2-20-unf |
| Weight | 5.05 kg |
| Dynamic load | 7550 kgf |
| Static load | 6170 kgf |
