SKU: UCX.12-38.TS.CHAL

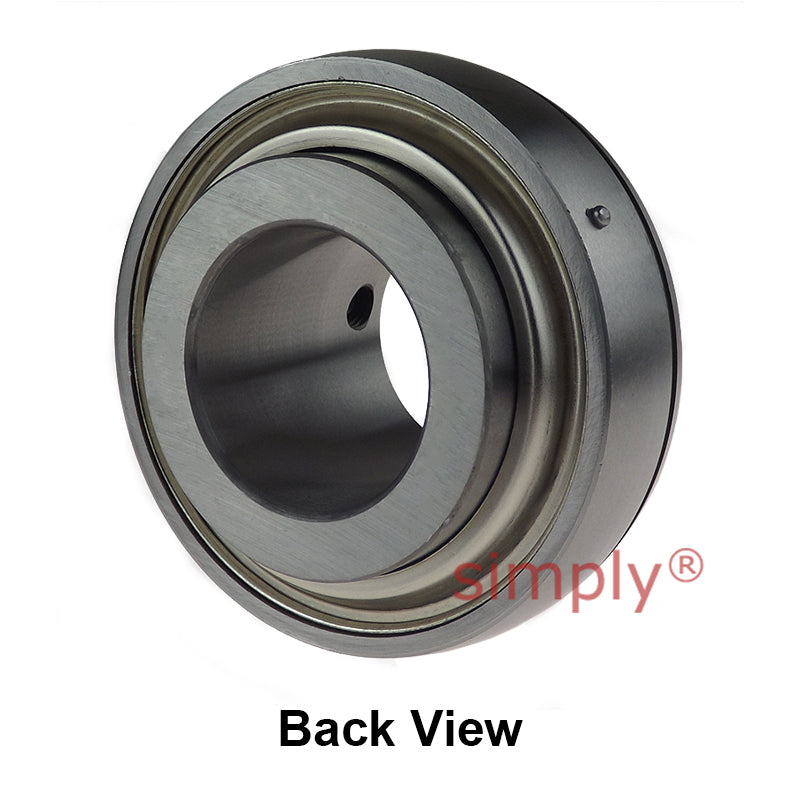

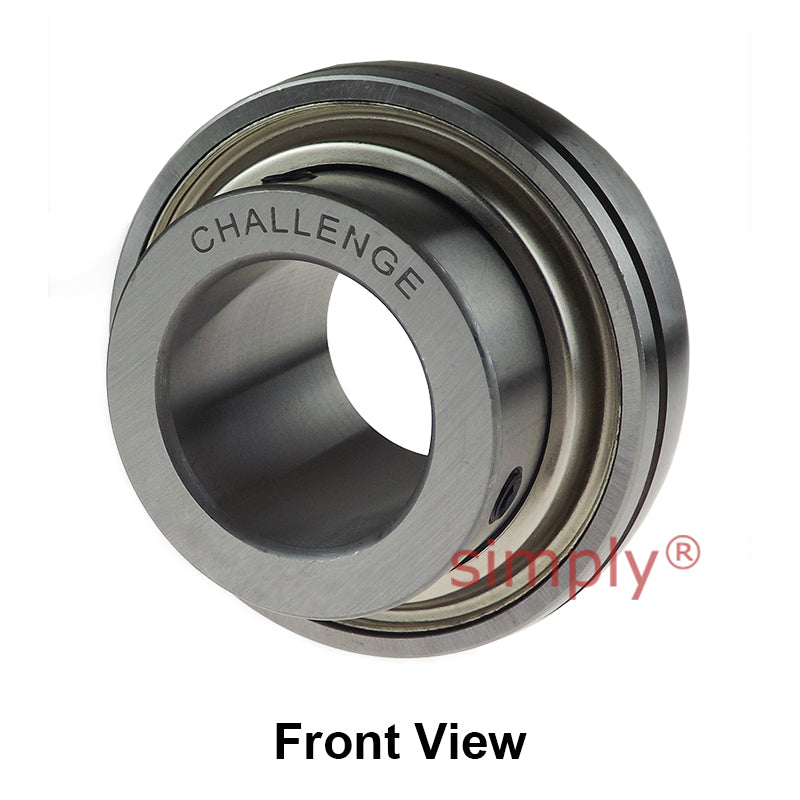

Challenge UCX12-38 Imperial Insert with Grub Screws with 2-3/8 inch Bore 120mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge UCX12-38 Imperial Insert with Grub Screws with 2-3/8 inch Bore 120mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Out of stock
Description
Description
UCX Insert with Grub Screws: These normal-duty bearing units are fitted with a triple lip seal. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. Also available as a complete housing assembly.
Benefits: High tolerance to harsh environments, cost effective bearing, re-lubricatable, grub screw fixing
- Brand / Quality:
- Challenge - Good Quality
- Inside Diameter:
- 60.33mm = 2.375 (2-3/8) inch
- Style:
- UCX
Technical
Technical
| Shaft Diameter d | 2-3/8 inch |
|---|---|
| Outside Diameter D | 120mm |
| Overall Width Bi | 65.1mm |
| Inner Race Width Be | 30mm |
| Back of Bearing to Centre Line n | 25.4mm |
| Front of Bearing to Centre Line m | 39.7mm |
| Dimension G | 10mm |
| Grub Screws x 2 | 3/8 - 24UNF inch |
| Load Rating (Dynamic) | 4480kg |
| Load Rating (Static) | 3470kg |
| Max Speed | 1500 rev/min |
| Working Temperature | -30°C to +120°C |
