SKU: UCUP207-106D1-NTN

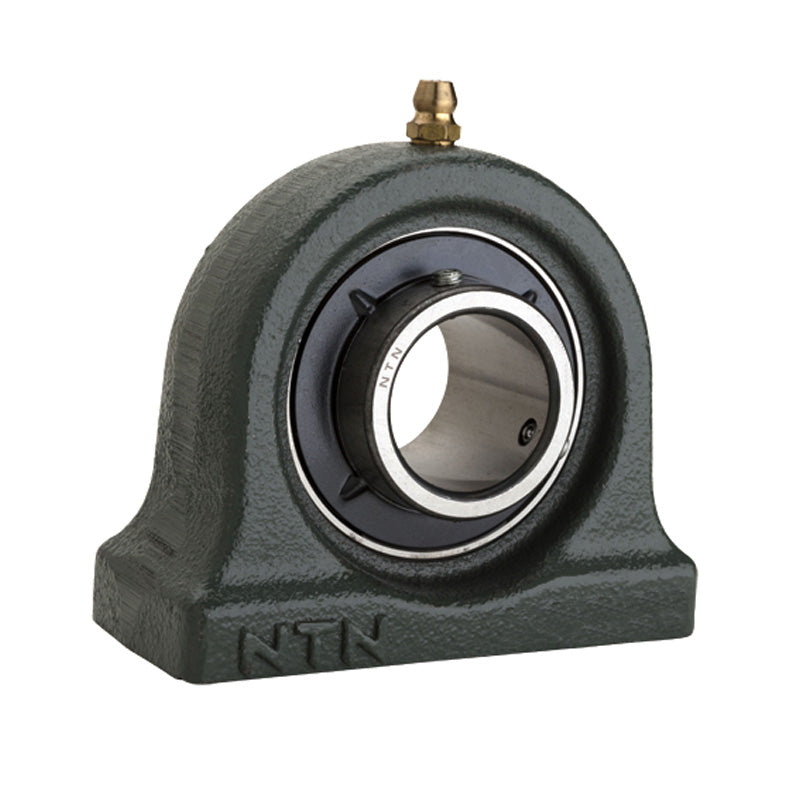

NTN UCUP207-106D1 Threaded Base Small Footprint Imperial Pillow / Plummer Block Housing Supplied with 1-3/8 inch Bore Insert - Allow 2-3 Days
NTN UCUP207-106D1 Threaded Base Small Footprint Imperial Pillow / Plummer Block Housing Supplied with 1-3/8 inch Bore Insert - Allow 2-3 Days
Out of stock
Description
Description
|
UCUP200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 34.93mm = 1.375 (1-3/8) inch
- Style:
- UCUP
- Bolt Hole Centres:
- 3-5/32 inch
Technical
Technical
| Shaft diameter | 1-3/8 inch |
|---|---|
| H | 1-7/8 inch |
| L | 4-11/32 inch |
| J | 3-5/32 inch |
| A | 1-7/8 inch |
| j | 25/32 inch |
| H<sub>1</sub> | 1/2 inch |
| H<sub>2</sub> | 3-3/4 inch |
| B | 1.689 inch |
| S | 0.689 inch |
| N | M14X2 |
| Mass | 3.5 lbs |
