SKU: UCT317-60

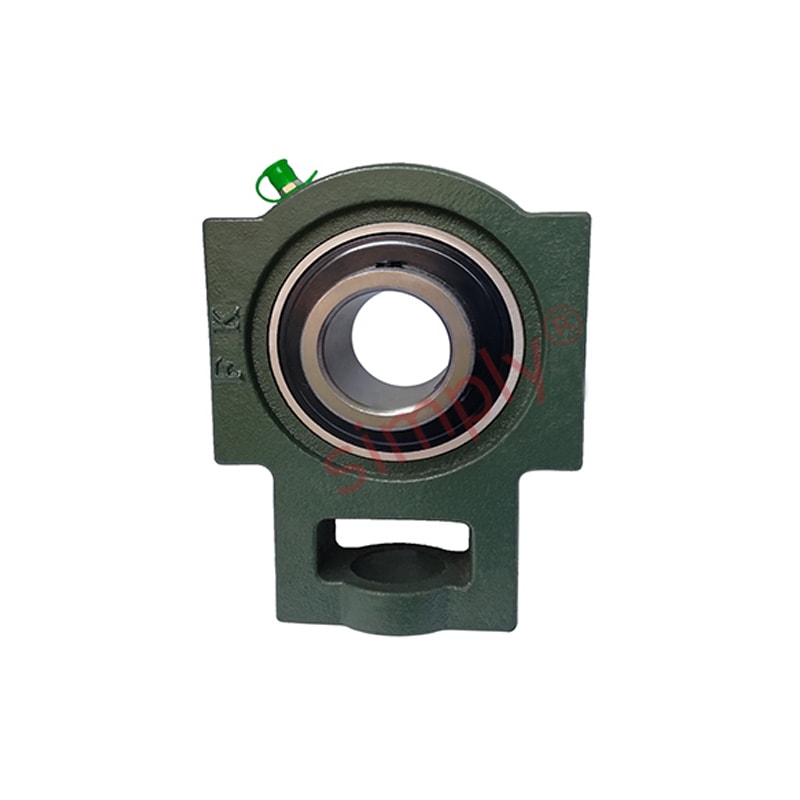

UCT317-60 Imperial Cast Iron Take Up Unit Housing with 3-3/4 inch Bore Insert
UCT317-60 Imperial Cast Iron Take Up Unit Housing with 3-3/4 inch Bore Insert
Out of stock
Share this product
Description
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 95.25mm = 3.75 (3-3/4) inch
- Style:
- UCT
Technical
Technical
| d | 3-3/4 inch |
|---|---|
| o | 1-13/16 inch |
| g | 1-5/16 inch |
| p | 6-1/2 inch |
| q | 4-3/16 inch |
| s | 2-1/4 inch |
| b | 7-3/32 inch |
| k | 1.378 inch |
| e | 9-29/64 inch |
| a | 10-5/8 inch |
| w | 12-11/16 inch |
| j | 4-11/32 inch |
| l | 2-27/32 inch |
| h | 7-3/4 inch |
| B | 4.0551 inch |
| n | 1.614 inch |
| Bearing no | UC317-60 |
| Housing no | T319 |
| Weight | 24.6 kg |
