SKU: UCT313-41

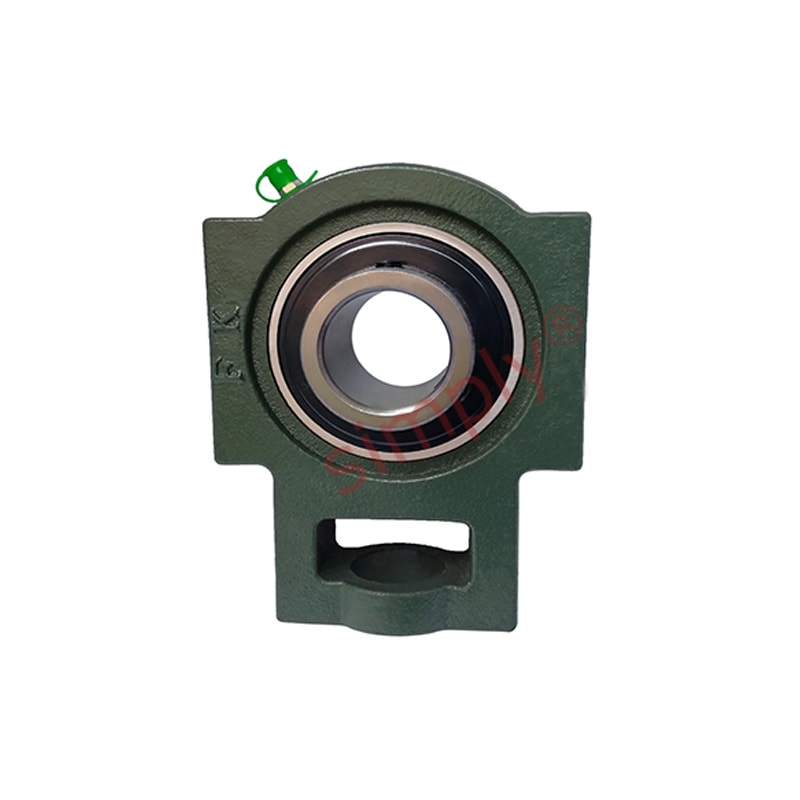

UCT313-41 Imperial Cast Iron Take Up Unit Housing with 2-9/16 inch Bore Insert
UCT313-41 Imperial Cast Iron Take Up Unit Housing with 2-9/16 inch Bore Insert
Out of stock
Share this product
Description
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 65.09mm = 2.563 (2-9/16) inch
- Style:
- UCT

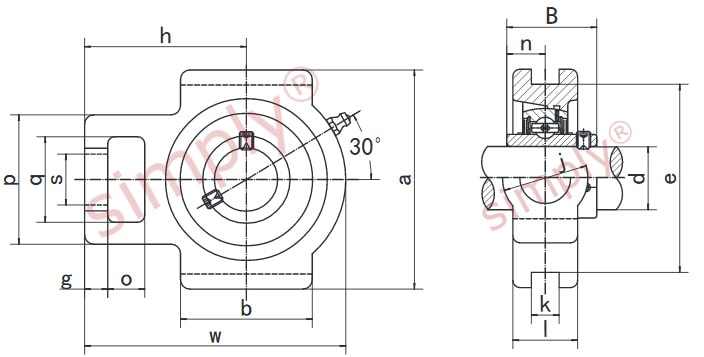

Technical
Technical
| d | 2-9/16 inch |
|---|---|
| o | 1-17/64 inch |
| g | 1-1/16 inch |
| p | 4-9/16 inch |
| q | 2-3/4 inch |
| s | 1-11/16 inch |
| b | 5-9/32 inch |
| k | 1.024 inch |
| e | 6-11/16 inch |
| a | 7-15/32 inch |
| w | 9-3/8 inch |
| j | 3-5/32 inch |
| l | 1-31/32 inch |
| h | 5-3/4 inch |
| B | 2.9528 inch |
| n | 1.181 inch |
| Bearing no | UC313-41 |
| Housing no | T313 |
| Weight | 9.3 kg |
