SKU: UCT309-26

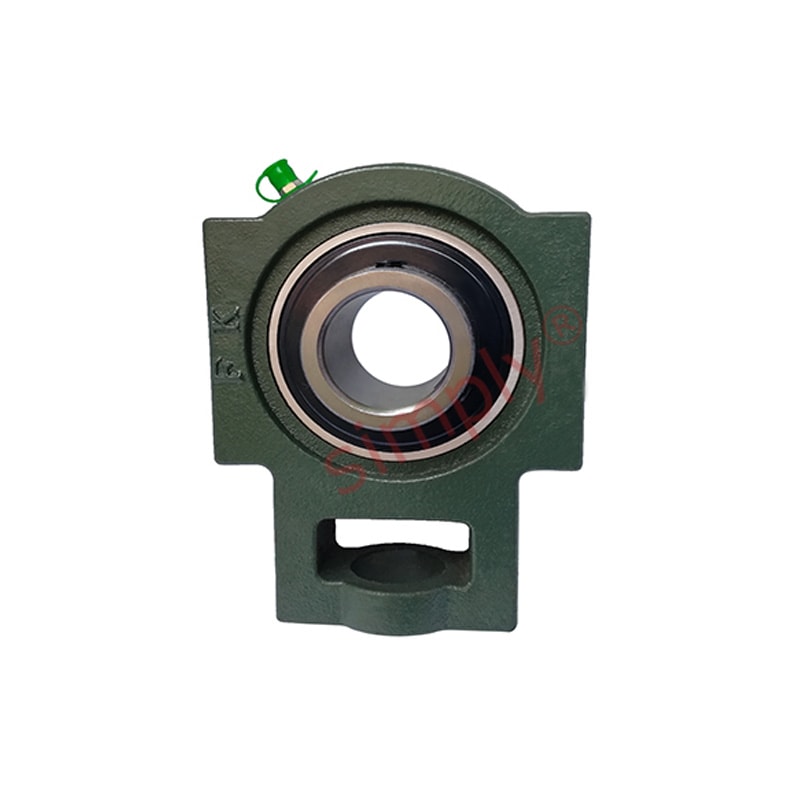

UCT309-26 Imperial Cast Iron Take Up Unit Housing with 1-5/8 inch Bore Insert
UCT309-26 Imperial Cast Iron Take Up Unit Housing with 1-5/8 inch Bore Insert
Out of stock
Share this product
Description
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 41.28mm = 1.625 (1-5/8) inch
- Style:
- UCT
Technical
Technical
| d | 1-5/8 inch |
|---|---|
| o | 15/16 inch |
| g | 25/32 inch |
| p | 3-17/32 inch |
| q | 2-5/32 inch |
| s | 1-11/32 inch |
| b | 3-13/16 inch |
| k | 0.709 inch |
| e | 4-59/64 inch |
| a | 5-7/16 inch |
| w | 7 inch |
| j | 2-5/32 inch |
| l | 1-1/2 inch |
| h | 4-11/32 inch |
| B | 2.2441 inch |
| n | 0.866 inch |
| Bearing no | UC309-26 |
| Housing no | T309 |
| Weight | 4 kg |
