SKU: UCT.206-20.TS.CHAL

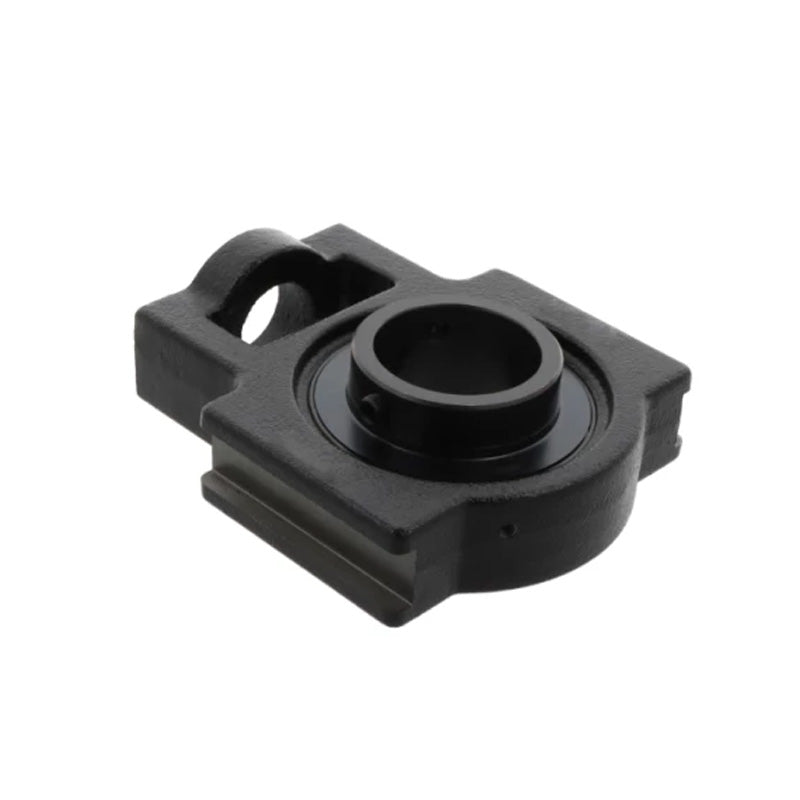

Challenge / FK UCT206-20 Imperial Cast Iron Take Up Unit Housing with 1-1/4 inch Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use

Challenge / FK UCT206-20 Imperial Cast Iron Take Up Unit Housing with 1-1/4 inch Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Shaft Diameter d 1-1/4 inch
Nut Slot Width o 16mm
Distance g 10mm
Dimention p 56mm
Dimention q 37mm
Hole s 22mm
Dimention b 57mm
Slot Width k 12mm
Distance Between Slots e 89mm
Overall Casting Depth a 102mm
Width w 113mm
Diameter j 37mm
Casting Width at Slots l 28mm
Dimension h 70mm
Grub Screws x 2 1/4 - 28UNF
Load Rating (Dynamic) 1520kg
Load Rating (Static) 1020kg
Max Speed 2800 rev/min
Grease Nipple Thread Size M6
Working Temperature -30°C to +120°C
Insert No UC206-20
Housing No T206
