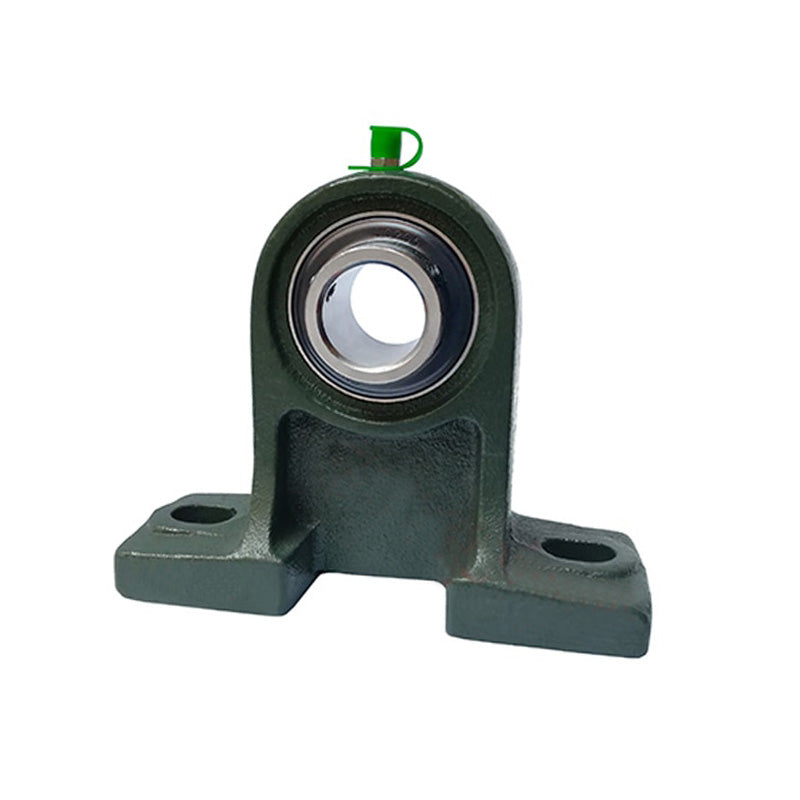

UCPH202-10 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 5/8 inch Insert

UCPH200 Series Normal Duty 2 Bolt Pillow Block Housings with Setscrews: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has a wide inner ring and 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing

Brand / Quality:

EU Budget - Economy Quality

Inside Diameter:

15.88mm = 0.625 (5/8) inch

Style:

UCPH

Bolt Hole Centres:

95.25mm = 3.75 (3-3/4) inch
