SKU: UCPE202D1-NTN

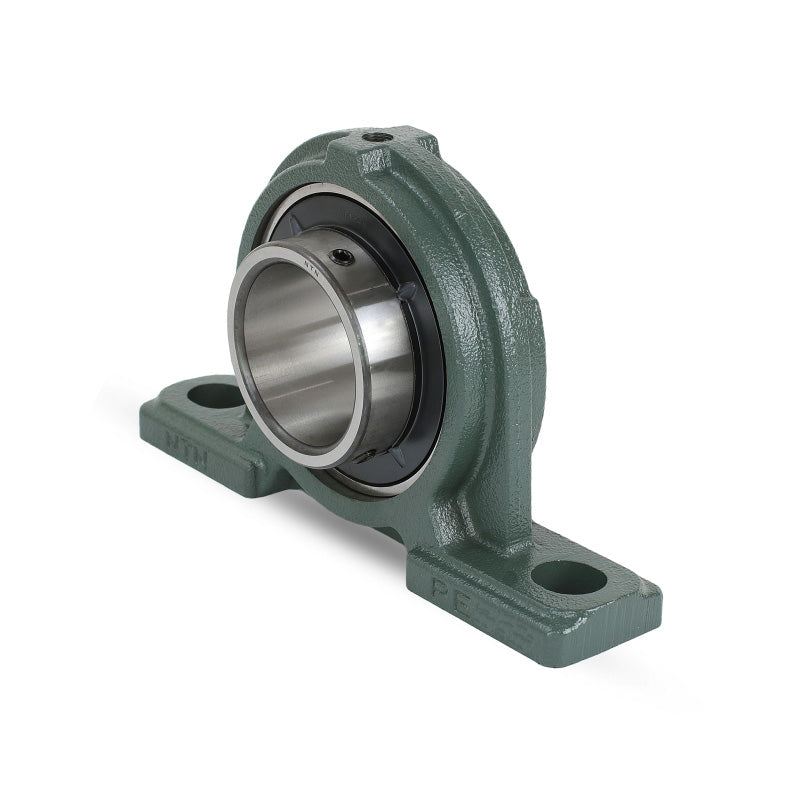

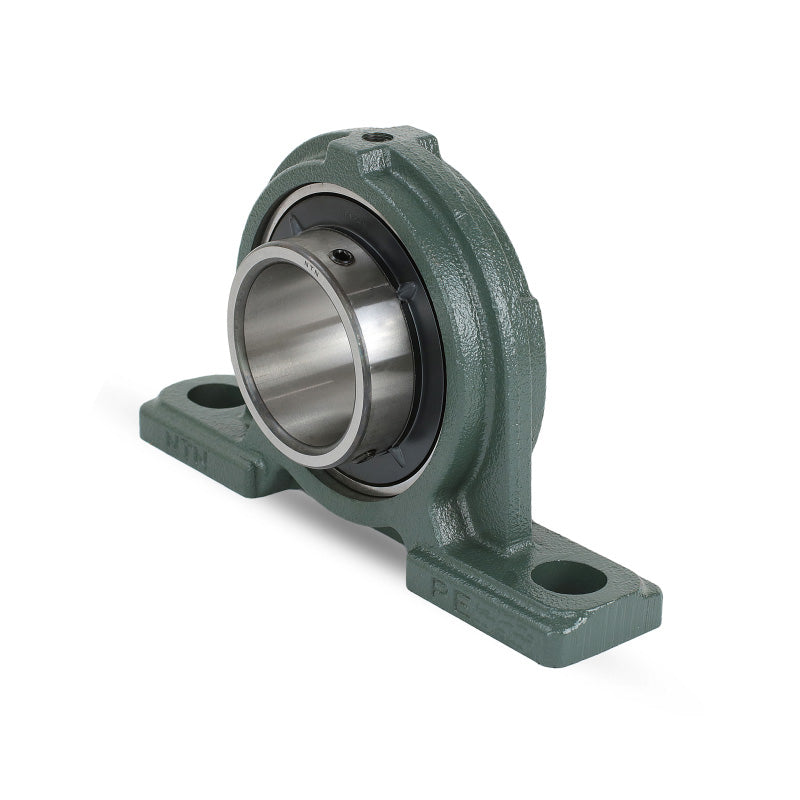

NTN UCPE202D1 Metric Ductile Cast Iron Two Bolt Pillow / Plummer Block Housing with 15mm Bore Insert - Allow 2-3 Days
NTN UCPE202D1 Metric Ductile Cast Iron Two Bolt Pillow / Plummer Block Housing with 15mm Bore Insert - Allow 2-3 Days
Out of stock
Share this product
Description
Description
UCPE200 Series 2 Bolt Ductile Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 15mm
- Style:
- UCPE
- Bolt Hole Centres:
- 95mm
Technical
Technical
| Shaft diameter | 15mm |
|---|---|
| H | 30.2mm |
| L | 120mm |
| J | 95mm |
| A | 30mm |
| N | 12mm |
| N<sub>1</sub> | 14mm |
| H<sub>1</sub> | 9mm |
| H<sub>2</sub> | 61mm |
| L<sub>1</sub> | 42mm |
| B | 31mm |
| S | 12.7mm |
| Fixing bolt | M10 |
| Mass | 0.5 kg |
