SKU: UCFE201D1-NTN

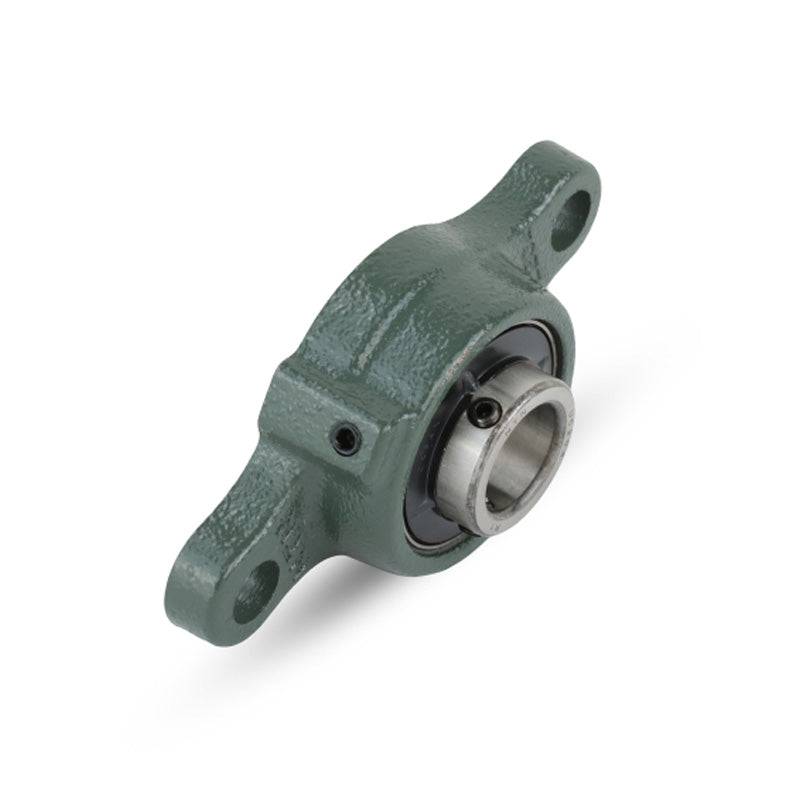

NTN UCFE201D1 Metric Ductile Cast Iron Two Bolt Rhombus Flange Housing 12mm Bore Insert - Allow 2-3 Days
NTN UCFE201D1 Metric Ductile Cast Iron Two Bolt Rhombus Flange Housing 12mm Bore Insert - Allow 2-3 Days
Out of stock
Share this product
Description
Description
UCFE200 Series 2 Bolt Ductile Cast Iron Rhombus Flange Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 12mm
- Style:
- UCFE
- Bolt Hole Centres:
- 90mm
Technical
Technical
| Shaft diameter | 12mm |
|---|---|
| H | 112mm |
| J | 90mm |
| A<sub>2</sub> | 15mm |
| A<sub>1</sub> | 10mm |
| A | 25mm |
| N | 12mm |
| L | 57mm |
| A<sub>0</sub> | 33.3mm |
| B | 31mm |
| S | 12.7mm |
| Fixing bolt | M10 |
| Mass | 0.4 kg |
