SKU: UCFC.216
UCFC216 Metric Four Bolt Cast Iron Round Flanged Housing with 80mm Insert
UCFC216 Metric Four Bolt Cast Iron Round Flanged Housing with 80mm Insert
Out of stock
Description
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 80mm
- Style:
- UCFC
- Pitch Circle Diameter:
- 200mm
Technical
Technical

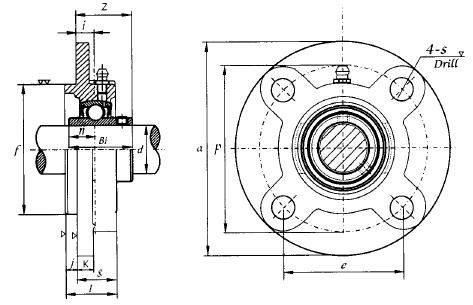

| d | 80mm |
|---|---|
| a | 240mm |
| P | 200mm |
| e | 141.4mm |
| i | 18mm |
| L | 58mm |
| s | 23mm |
| j | 16mm |
| k | 18mm |
| g | 42mm |
| f | 170mm |
| z | 67.3mm |
| Bi | 82.6mm |
| n | 33.3mm |
| Bolt Size | M20 |
| Weight | 8.9 kg |
| Dynamic load | 5700 kgf |
| Static load | 4550 kgf |
