SKU: UCFB211

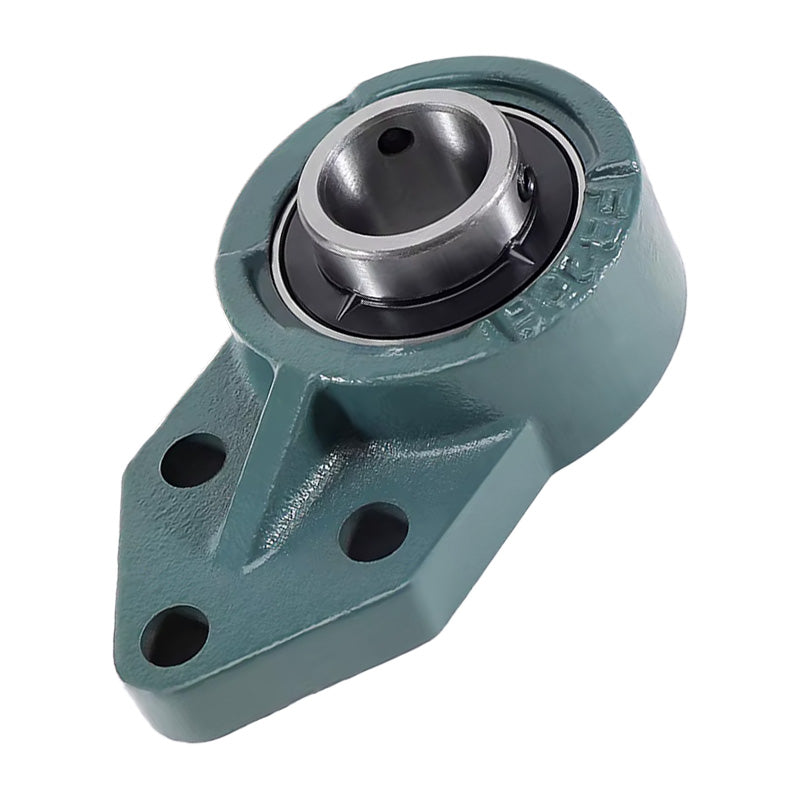

UCFB211 Metric 3 Bolt Cast Iron Bracket Flange Bearing 55mm Bore
UCFB211 Metric 3 Bolt Cast Iron Bracket Flange Bearing 55mm Bore
Out of stock
Share this product
Description
Description
UCFB200 Series Normal Duty 3 Bolt Bracket Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 55mm
- Style:
- UCFB
- Bolt Hole Centres:
- 62mm
Technical
Technical
| d | 55mm |
|---|---|
| w | 207mm |
| b | 130mm |
| k | 86mm |
| a | 90mm |
| l | 43mm |
| s | 14mm |
| g | 18mm |
| h | 78mm |
| j | 50mm |
| e | 62mm |
| i | 25mm |
| z | 58.4mm |
| B | 55.6mm |
| n | 22.2mm |
| Bolt size | M12 |
| Bearing no | UC211 |
| Housing no | FB211 |
| Weight | 3.095 kg |
