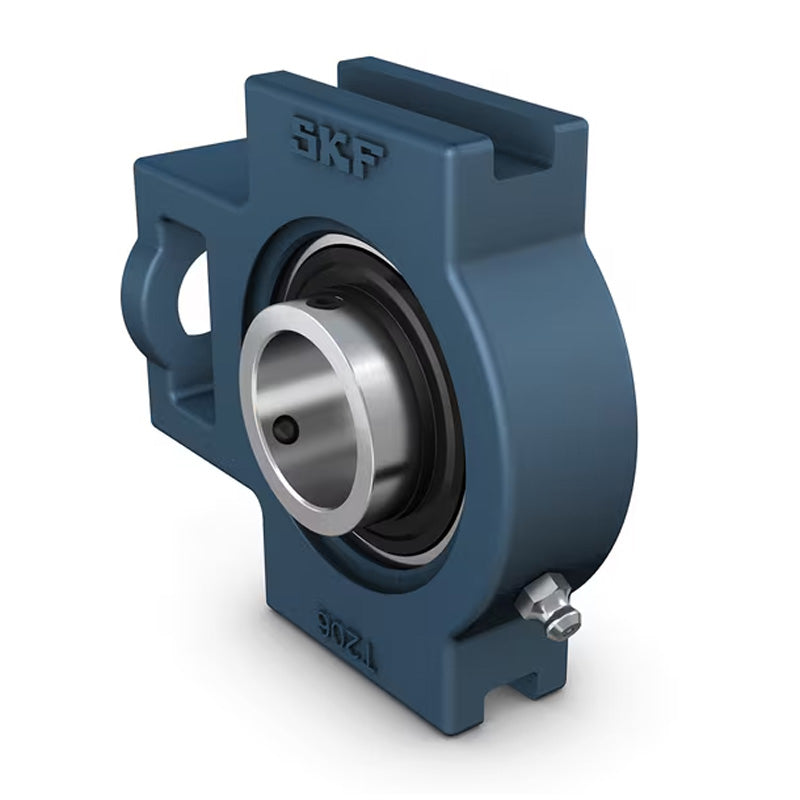

SKF TUL35TR/VE495 Polyester Housing Food Industry Grub Screw Take Up Unit 35mm
SKF TUL35TR/VE495 Polyester Housing Food Industry Grub Screw Take Up Unit 35mm
Out of stock
Description
Description
|
SKF Y-bearing Take Up Units for the Food Industry: Developed specifically for food and beverage applications. The housing of this unit is made of a chemical and corrosion resistant composite material which is designed to withstand frequent washdowns. The non-porous surface resists the accumulation of bacteria-forming food particles and the light-grey colour makes visual inspection easy. These units are lubricated with food-grade grease. Benefits: Designed for the food industry, lubricated with food-grade grease, optimised for handling shock loads and high vibration levels. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 35mm
- Style:
- TU
Technical
Technical
| d | 35mm |
|---|---|
| A | 34.6mm |
| A1 | 12mm |
| A2 | 30mm |
| B | 42.9mm |
| H | 102mm |
| H1 | 89mm |
| H2 | 40mm |
| L | 125mm |
| L1 | 76mm |
| L2 | 63.5mm |
| G | M16 |
| G1 | 21mm |
| s1 | 25.4mm |
| Static load Cr | 15.3 kN |
| Dynamic load Cor | 25.5 kN |
| Fatigue load limit Pu | 0.655 kN |
| Limiting speed | 3200 rpm |
| A5 | 29mm |
| A6 | 29mm |
| Weight | 0.73 kg |
| Compatible end cover | ECL207 |
