SKU: TSML50C-ISB
ISB TSML50C Left Hand Maintenance Free Steel/PTFE Lined Plain Female Rod End M50 Thread
ISB TSML50C Left Hand Maintenance Free Steel/PTFE Lined Plain Female Rod End M50 Thread
Equivalent to: TSML50C
Out of stock
Share this product
Description
Description
TSF - TSM Series Rod End Bearings:: This series is constructed with C 45 improved and forged steel; the surfaces are protected from external corrosive agents, thanks to a galvanised zinc covering. They are available with internal and external threading, to the right and the left and they are provided with greasers or bores for lubrication.
- Brand / Quality:
- ISB-Good Quality
- Thread Size:
- M48x2
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Bore:
- 50
- Inside Diameter:
- 50
- Material:
- Steel/PTFE Lined

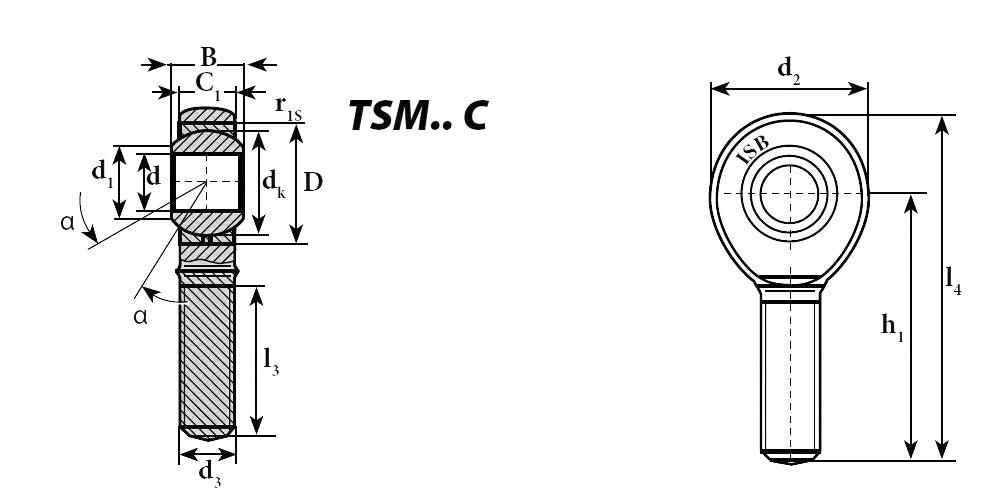

Technical
Technical
| d | 50mm |
|---|---|
| d2 | 117mm |
| d3 | M48x2mm |
| dk | 82.5mm |
| B | 60mm |
| C1 | 45mm |
| h1 | 185mm |
| I3 | 105mm |
| I4 | 243.5mm |
| α | 17° |
| r 1s min | 0.3mm |
| Weight | 4.8Kg |
