SKU: TSFL40RB-ISB

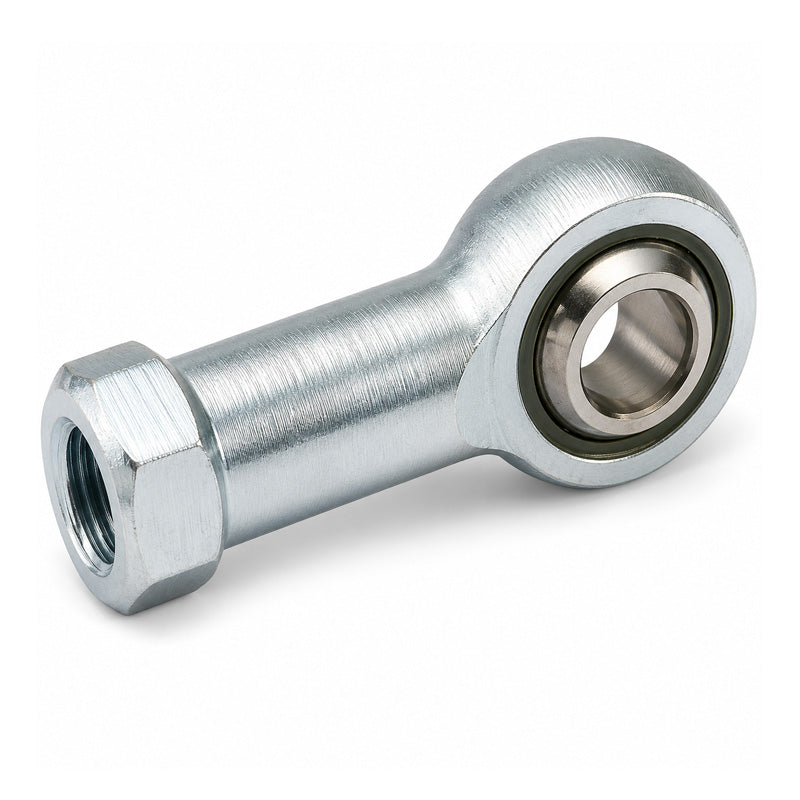

ISB TSFL40RB Left Hand Maintenance Required Steel/Steel Plain Female Rod End M40 Thread
ISB TSFL40RB Left Hand Maintenance Required Steel/Steel Plain Female Rod End M40 Thread
Equivalent to: TSFL40RB
Out of stock
Share this product
Description
Description
TSM..RB and TSF..RB Series Heavy Duty Rod End Bearings:: This series of rod ends have integral single-row self-aligning roller bearings. TSM..RB and TSF..RB rod-ends series have an integrated single line roller bearing, self-lubricated by a special high-speed bearing grease. TSM..RB and TSF..RB series are available with left/right hand screw, inner/ outer thread, metric and inches. Produced according to DIN ISO 12240-4, K series.
- Brand / Quality:
- ISB-Good Quality
- Thread Size:
- M42X2
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Bore:
- 40
- Inside Diameter:
- 40
- Material:
- Steel/Steel
Technical
Technical
| d1 | 40mm |
|---|---|
| d2 | 53mm |
| d3 | M 42X2mm |
| d4 | 45.1mm |
| d6 | 91mm |
| d7 | 65mm |
| b1 | 49mm |
| b3 | 33mm |
| h | 142mm |
| I | 60mm |
| I1 | 19mm |
| I3 | 50mm |
| SW | 55mm |
| α | 8° |
| Limit Speed | 400Min-1 |
| Dynamic C | 75KN |
| Static Co | 65KN |
| Weight | 2.407Kg |
