SKU: TMSP1-SKF

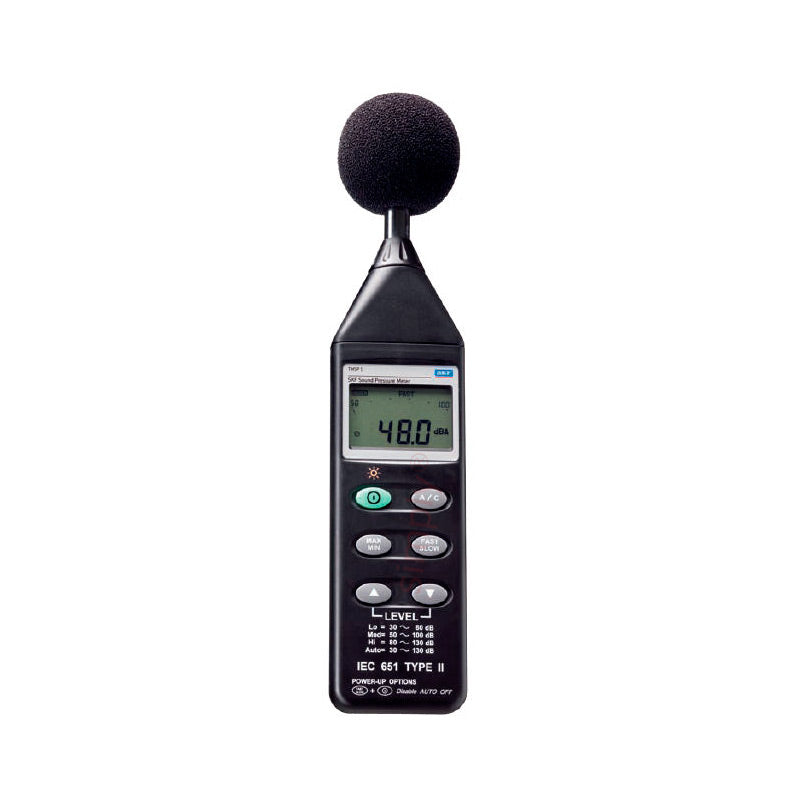

SKF TMSP1 Sound Pressure Meter
Out of stock
Share this product
Description
SKF TMSP Series: The SKF TMSP 1 is a high quality, hand-held instrument for measuring the sound level in decibels. The environmental noise is picked up by the electret condenser microphone and then processed by the handset. The surrounding noise can be monitored both quantitatively and qualitatively. The SKF Sound pressure meter is supplied in a carrying case complete with windshield, calibration screwdriver, jack for external outputs and an alkaline battery. dBA and dBC scale weightings for both general sound level and low frequency noise measurements suits most applications. Fast and Slow time weighting selection to enable either normal measurements or measurement of average level of fluctuating noise. Four different measurement scales to suit almost all eventualities. Four digit LCD panel with both digital and bar graph display. User selectable backlight for use in environments with poor lighting. Conforms to IEC651 type2, ANSI S1.4 type 2 for sound level meters.
Note: User friendly and easy to operate, no special training required
- Brand / Quality:
- SKF - High Quality
Technical
| Frequency range | 31,5 Hz to 8 KHz |
|---|---|
| Measuring level range | 30 to 130 dB |
| Display | LCD |
| Digital display | 4 digits |
| Resolution | 1 dB |
| Display update | 100 ms |
| Time weighting | Fast (125 ms), Slow (1 s) |
| Level ranges | Lo = 30 ~ 80 dB, Med = 50 ~ 100 dB, Hi = 80 ~ 130 dB, Auto = 30~130 dB |
| Accuracy | +1,5 dB (ref 94 dB @1 KHz) |
| Dynamic range | 50 dB |
| Power supply | 9V Alkaline, IEC 6LR61 |
| Power life | 50 hours (with alkaline battery) |
| Operation temperature | 0 to 40 c (32 to 104 F) |
| Operation humidity | 10 to 90 % RH |
| Operation altitude | Up to 2 000 m (6 560 ft) above sea level |
| Storage temperature | -10 to 60 c (14 to 140 F) |
| Storage humidity | 10 to 75 % RH |
| Dimensions | 275 x 64 x 30 mm (10.8 x 2.5 x 1.2 in.) |
| Case dimensions | 530 x 85 x 180 mm (20.9 x 3.4 x 7.0 in.) |
