SKU: TMRT1-SKF

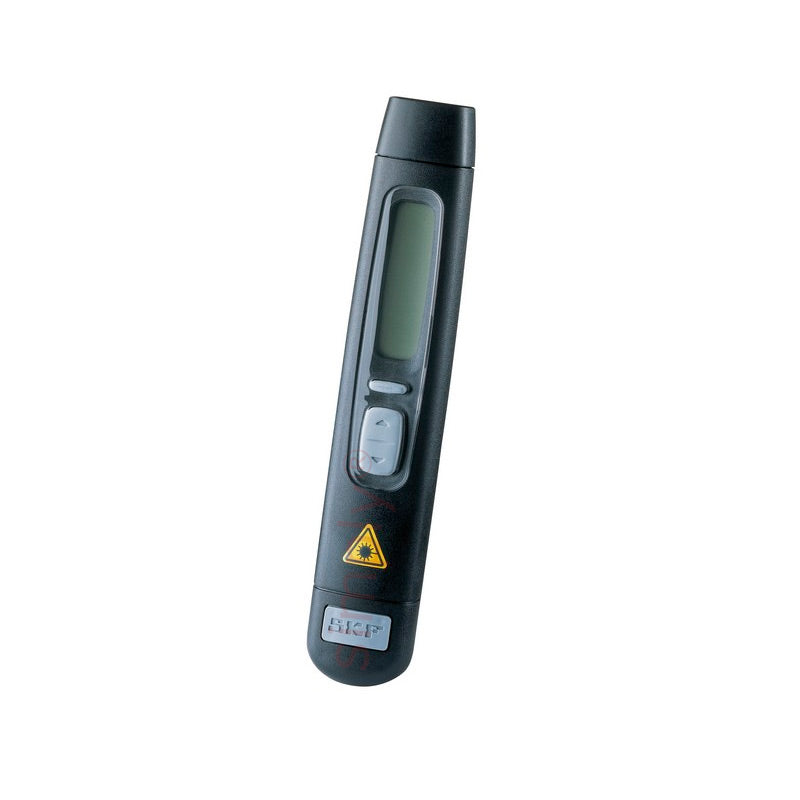

SKF TMRT1 Multi-functional Laser / Contact Tachometer
SKF TMRT1 Multi-functional Laser / Contact Tachometer
Out of stock
Share this product
Description
Description
SKF TMRT1 Multi-functional Tachometer: Measuring speed is important in determining if a fan is operating according to specification, especially when calibrating machinery after repairs. The new TMRT series of tachometers from SKF makes it easy to measure fan speeds quickly and accurately. high-quality, accurate, multi-function tachometers for laser or contact measurement of rotational or linear speed.
Note: Easy-to-read displays, even when pointing the unit down into the machinery
- Brand / Quality:
- SKF - High Quality
Technical
Technical
| Display | Inverting vertical 5 digit LCD |
|---|---|
| Displayed resolution | Fully auto ranging up to 0,001 digit or ?1 digit fixed |
| Memory | Last reading held for 1 minute |
| Low battery indicator | Yes |
| Auto switch off | After 1 minute |
| Optical modes | r/min and rps (also Count and Time interval) |
| Contact modes | r/min and rps, metres, yards, feet, per min and per sec |
| Count modes | total revs, metres, feet, yards |
| Time interval | in seconds between pulses (reciprocal rate) |
| Speed capture feature | Maximum, Minimum or Average rate |
| Rotational speed range | 3 to 99 999 r/min |
| Measuring distance | 50 mm to 2 000 mm (1.9 - 78.7 in.) |
| Laser sensor | 1x built-in class 2 laser |
| Rotational speed range | Max. 50 000 rpm for 10 sec |
| Contact adaptors | Included with rpm cone & removable metric wheel assembly |
| Battery | 4 x AAA alkaline type IEC LR03 |
| Operation time | 24 hours continuous use |
| Operating temperature | 0 to 40c (32 to 104 F) |
| Storage temperature | ?10 to +50c (14 to 122 F) |
| Relative humidity | 10 to 90% RH non-condensing |
| IP rating | IP 40 |
