SKU: TEN-ARM-SE45-DUN

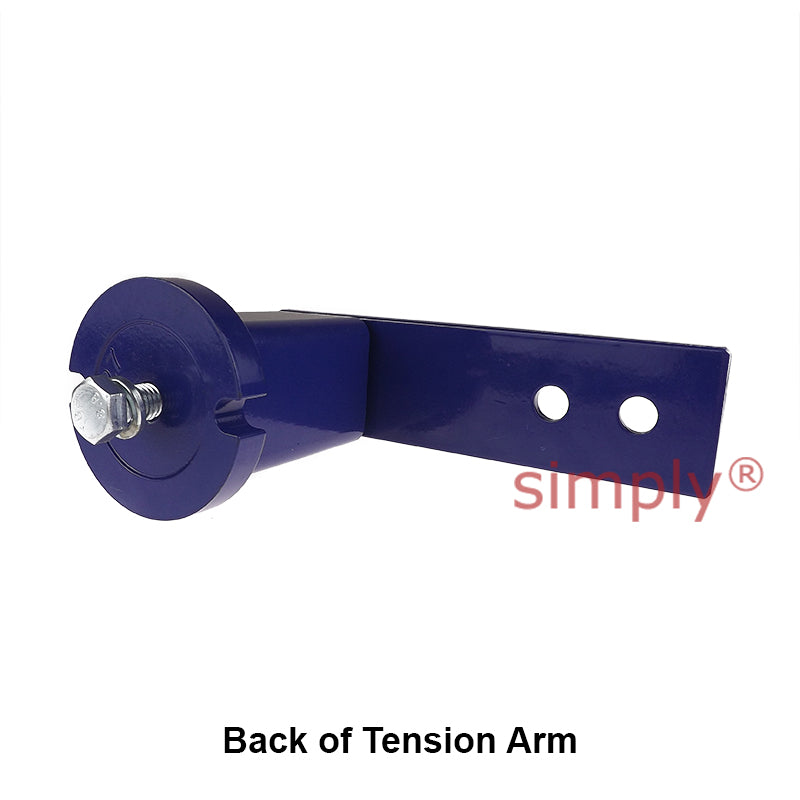

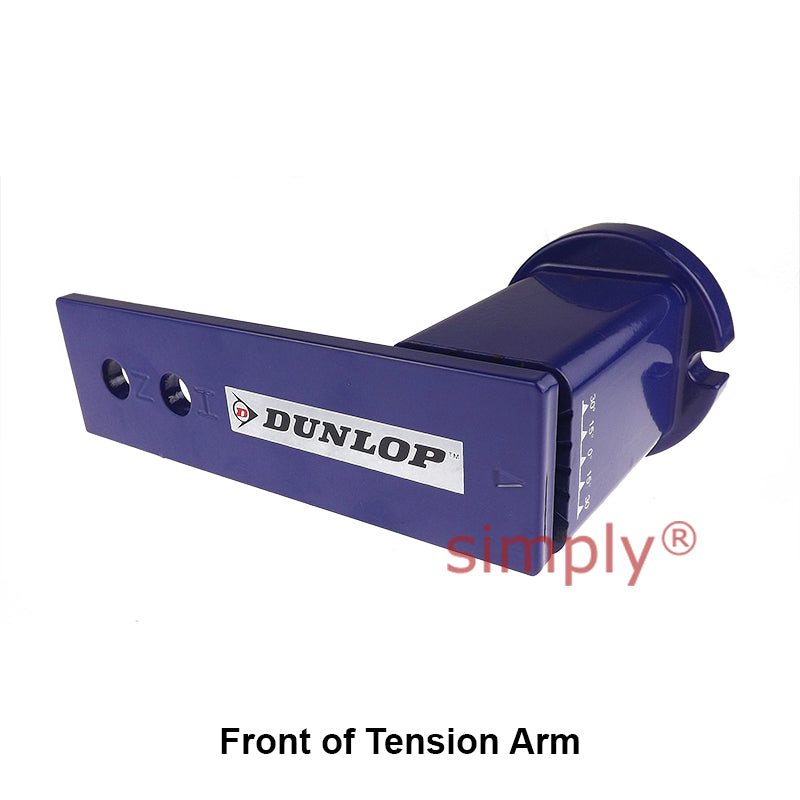

Dunlop SE45 Chain and V-Belt Tension Arm
Dunlop SE45 Chain and V-Belt Tension Arm
Out of stock
Description
Description
Dunlop Chain and V-Belt Tension Arm: The tensioning element with the specification SE (SE 11 to SE 45) is the mostly used standard unit for tensioning all kinds of chain and belt drives.
Benefits: Suitable for applications in temperature range from -40 deg C to +80 deg C
- Brand / Quality:
- Dunlop - Good Quality
- Thread Size:
- M20
- Part No:
- SE45

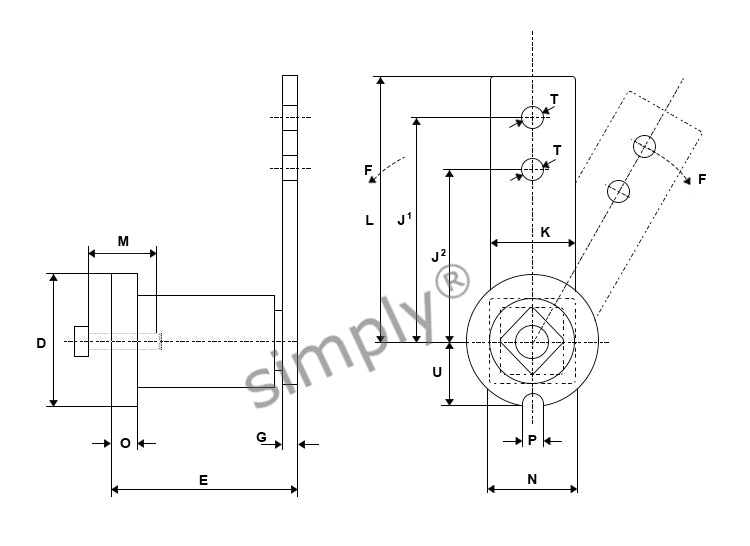

Technical
Technical
| Part No. | SE45 |
|---|---|
| D | 115mm |
| E | 200 (+3/-1)mm |
| G | 12mm |
| H | M20 |
| J<sup>1</sup> | 225mm |
| J<sup>2</sup> | 225mm |
| K | 70mm |
| L | 260mm |
| M | 50mm |
| N | 80mm |
| O | 18mm |
| P | 12.5mm |
| T | 20.5mm |
| U | 52mm |
