SKU: SYFL30TR/VE495-SKF

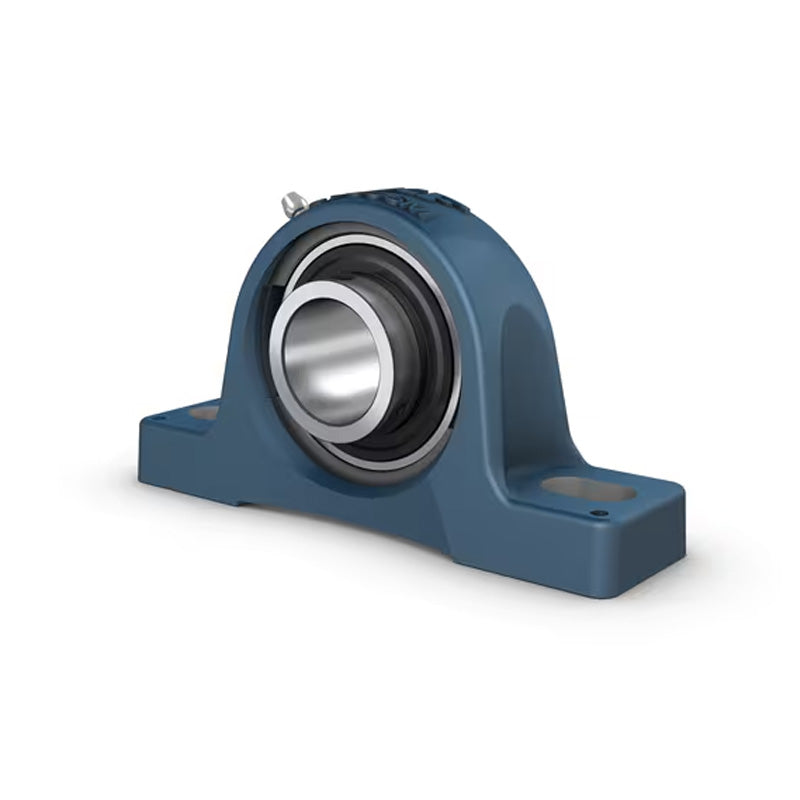

SKF SYFL30TR/VE495-SKF Plummer Block with Food-Grade Grease Grub Screw 30mm Insert
SKF SYFL30TR/VE495-SKF Plummer Block with Food-Grade Grease Grub Screw 30mm Insert
Out of stock
Description
Description
|
SKF Y-bearing Short Base Plummer Block Units for the Food Industry: Developed specifically for food and beverage applications. The housing of this unit is made of a chemical and corrosion resistant composite material which is designed to withstand frequent washdowns. The non-porous surface resists the accumulation of bacteria-forming food particles and the light-grey colour makes visual inspection easy. These units are lubricated with food-grade grease. Benefits: Designed for the food industry, lubricated with food-grade grease, optimised for handling shock loads and high vibration levels. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Style:
- SYFL
- Bolt Hole Centres:
- 76.2mm
Technical
Technical
| d | 30mm |
|---|---|
| A | 42.5mm |
| A1 | 28mm |
| B | 38.1mm |
| H | 84mm |
| H1 | 42.9mm |
| J | 76.2mm |
| L | 101mm |
| G | M10 |
| G1 | 12mm |
| s1 | 22.2mm |
| Static load Cr | 11.2 kN |
| Dynamic load Cor | 19.5 kN |
| Fatigue load limit Pu | 0.475 kN |
| Limiting speed | 3800 rpm |
| A5 | 27mm |
| A6 | 27mm |
| Weight | 0.49 kg |
| Housing | SYFL506 |
| Insert | YAR206-2RF/VE495 |
| Compatible end cover closed | ECL206 |
| Compatible end cover open | ECL206B |
