SKU: SW420-M2400

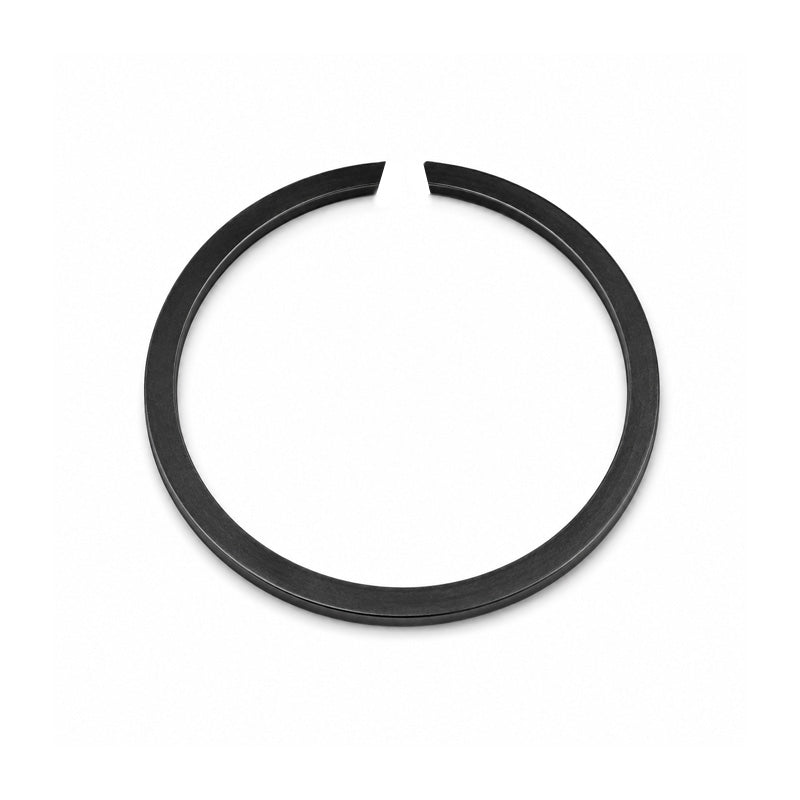

SW420 Snap Ring to Suit 420mm Shaft
SW420 Snap Ring to Suit 420mm Shaft
Equivalent to: DIN5417 DIN 5417 CFS420 CFS-420 2400-420 SW420 SW-420 M2400-420
Out of stock
Description
Description
|
Flat Wire Snap Rings for Shafts: These retainers are designed to fit into a groove in the shaft. Once fitted into the groove the part of the ring protruding from the groove serves to hold an assembly in place. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 410mm
- Shaft Size:
- 420mm
Technical
Technical
| d1 | 420mm |
|---|---|
| s | 4.5mm (Tolerance -0.1) |
| b | 12mm (Tolerance -0.1) |
| d3 max. | 410mm |
| d2 | 415mm (Tolerance - 0.36) |
| m min. | 4.8mm |
| FN | 547 kN |
| FR | 133 kN |
| n det x1000 | 0.3 rpm |
