SKU: SW310-M2400

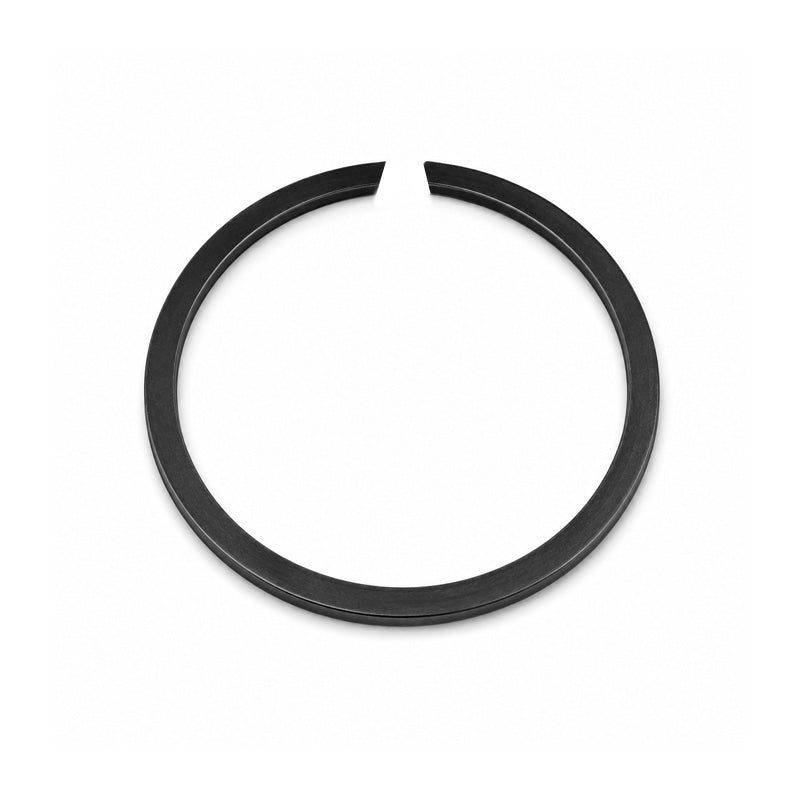

SW310 Snap Ring to Suit 310mm Shaft
SW310 Snap Ring to Suit 310mm Shaft
Equivalent to: DIN5417 DIN 5417 CFS310 CFS-310 2400-310 SW310 SW-310 M2400-310
Out of stock
Description
Description
|
Flat Wire Snap Rings for Shafts: These retainers are designed to fit into a groove in the shaft. Once fitted into the groove the part of the ring protruding from the groove serves to hold an assembly in place. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 302mm
- Shaft Size:
- 310mm
Technical
Technical
| d1 | 310mm |
|---|---|
| s | 4mm (Tolerance -0.1) |
| b | 7.5mm (Tolerance -0.1) |
| d3 max. | 302mm |
| d2 | 305mm (Tolerance - 0.32) |
| m min. | 4.2mm |
| FN | 402 kN |
| FR | 139 kN |
| n det x1000 | 0.3 rpm |
