SKU: SW290-M2400

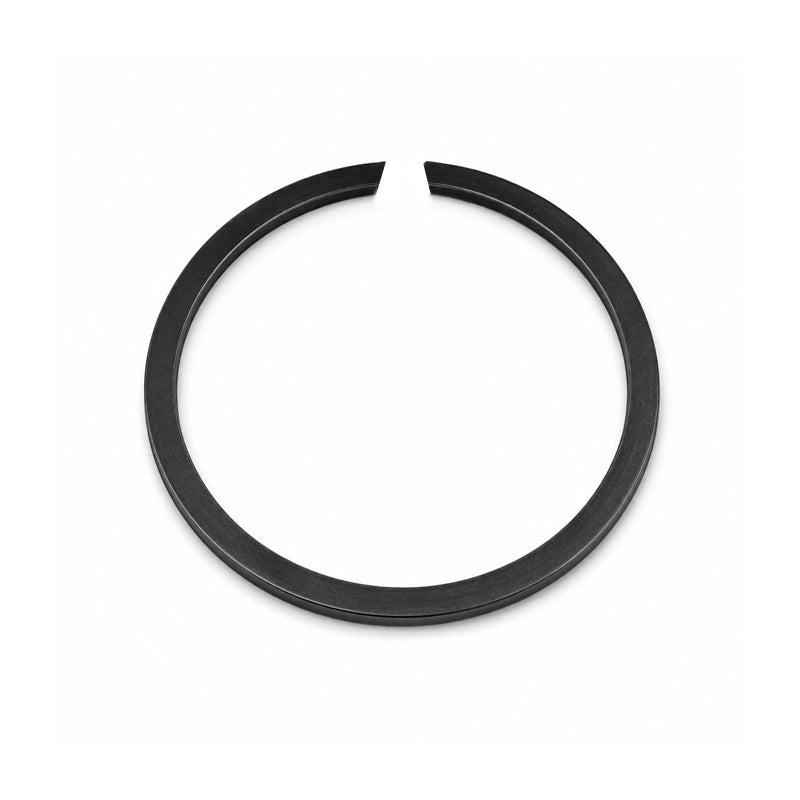

SW290 Snap Ring to Suit 290mm Shaft
SW290 Snap Ring to Suit 290mm Shaft
Equivalent to: DIN5417 DIN 5417 CFS290 CFS-290 2400-290 SW290 SW-290 M2400-290
Out of stock
Description
Description
|
Flat Wire Snap Rings for Shafts: These retainers are designed to fit into a groove in the shaft. Once fitted into the groove the part of the ring protruding from the groove serves to hold an assembly in place. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 282.1mm
- Shaft Size:
- 290mm
Technical
Technical
| d1 | 290mm |
|---|---|
| s | 4mm (Tolerance -0.1) |
| b | 7.5mm (Tolerance -0.1) |
| d3 max. | 282.1mm |
| d2 | 285mm (Tolerance - 0.32) |
| m min. | 4.2mm |
| FN | 377 kN |
| FR | 148 kN |
| n det x1000 | 0.3 rpm |
