SKU: SW265-M2400

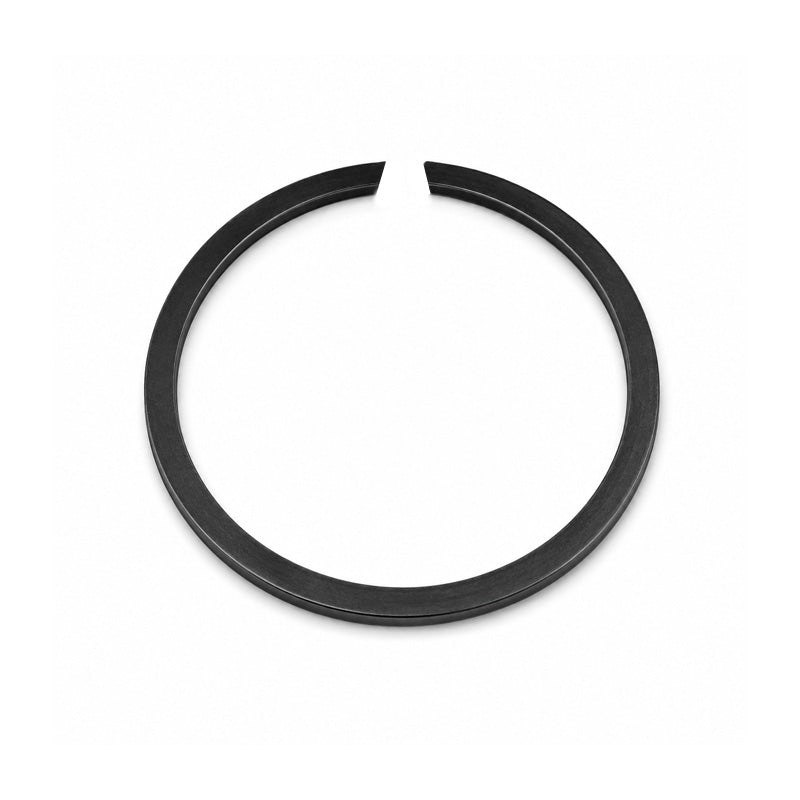

SW265 Snap Ring to Suit 265mm Shaft
SW265 Snap Ring to Suit 265mm Shaft
Equivalent to: DIN5417 DIN 5417 CFS265 CFS-265 2400-265 SW265 SW-265 M2400-265
Out of stock
Description
Description
|
Flat Wire Snap Rings for Shafts: These retainers are designed to fit into a groove in the shaft. Once fitted into the groove the part of the ring protruding from the groove serves to hold an assembly in place. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 257.4mm
- Shaft Size:
- 265mm
Technical
Technical
| d1 | 265mm |
|---|---|
| s | 4mm (Tolerance -0.1) |
| b | 7.5mm (Tolerance -0.1) |
| d3 max. | 257.4mm |
| d2 | 260mm (Tolerance - 0.32) |
| m min. | 4.2mm |
| FN | 344 kN |
| FR | 165 kN |
| n det x1000 | 0.4 rpm |
