SKU: SW250-M2400

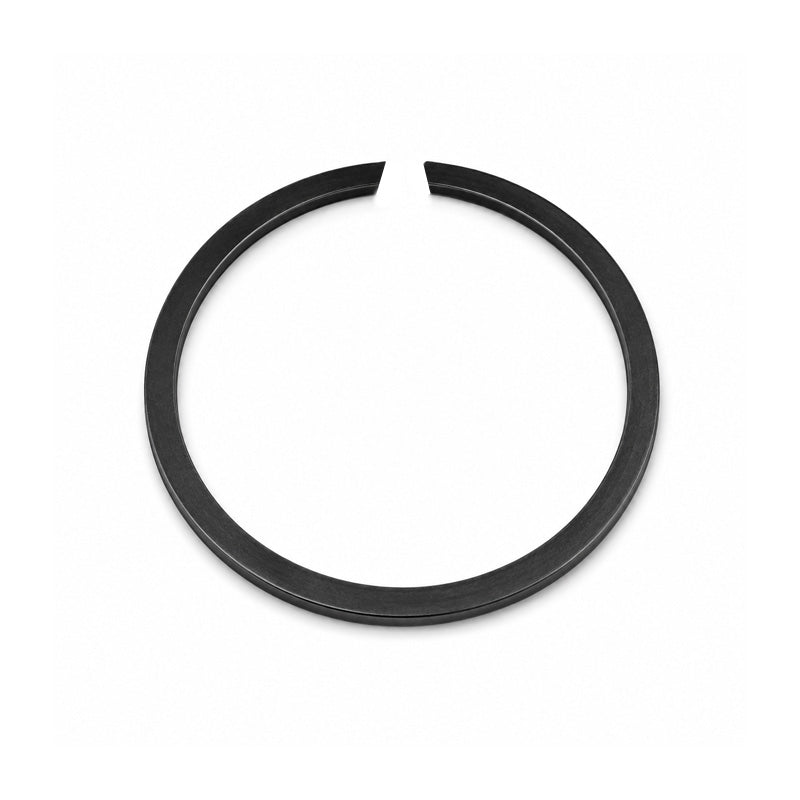

SW250 Snap Ring to Suit 250mm Shaft
SW250 Snap Ring to Suit 250mm Shaft
Equivalent to: DIN5417 DIN 5417 CFS250 CFS-250 2400-250 SW250 SW-250 M2400-250
Out of stock
Description
Description
|
Flat Wire Snap Rings for Shafts: These retainers are designed to fit into a groove in the shaft. Once fitted into the groove the part of the ring protruding from the groove serves to hold an assembly in place. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 244.5mm
- Shaft Size:
- 250mm
Technical
Technical
| d1 | 250mm |
|---|---|
| s | 3mm (Tolerance -0.1) |
| b | 5mm (Tolerance -0.1) |
| d3 max. | 244.5mm |
| d2 | 247mm (Tolerance - 0.32) |
| m min. | 3.2mm |
| FN | 195 kN |
| FR | 49 kN |
| n det x1000 | 0.3 rpm |
