SKU: SUCF.PL.211-34

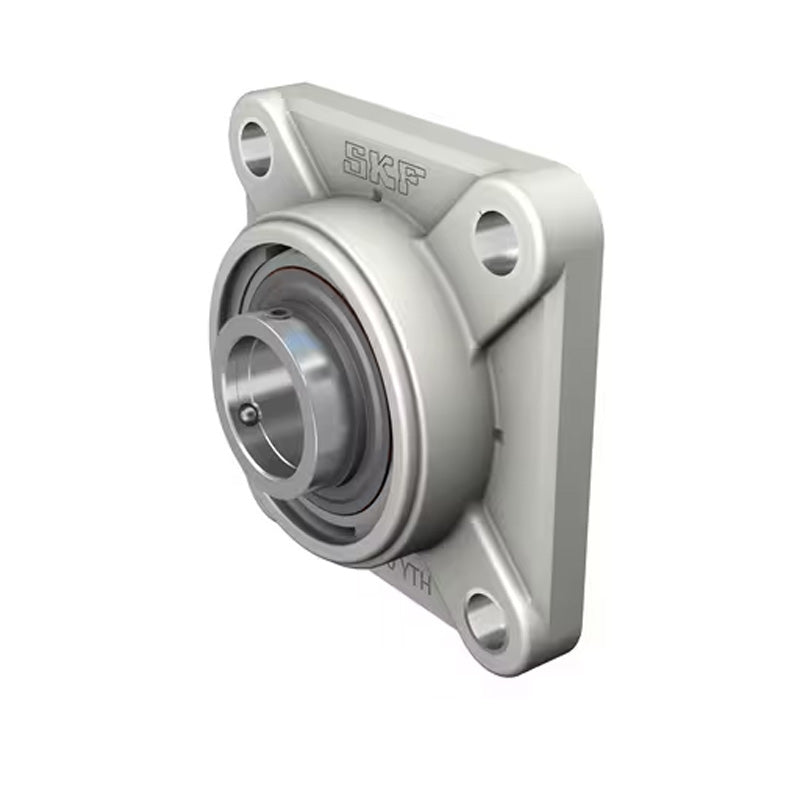

SUCFPL211-34 Imperial Four Bolt Square Thermo Plastic Flange Housing with 2-1/8 inch Bore Stainless Insert
SUCFPL211-34 Imperial Four Bolt Square Thermo Plastic Flange Housing with 2-1/8 inch Bore Stainless Insert
Out of stock
Description
Description
|
UCFPL or PSF Series Thermo-Plastic 4 Bolt Square Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Colour may vary. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 53.98mm = 2.125 (2-1/8) inch
- Temperature Range:
- -35 to 102 deg C
- Style:
- SUCF
- Bolt Hole Centres:
- 130mm
Technical
Technical
| d | 2-1/8 inch |
|---|---|
| a | 162mm |
| e | 130mm |
| i | 25mm |
| g | 20mm |
| L | 43mm |
| S | 19mm |
| Z | 58.4mm |
| Bi | 55.6mm |
| n | 22.2mm |
| Bolt | 16mm |
| Weight | 3.4 kg |
| Dynamic load | 3400 kgf |
| Static load | 2550 kgf |
| Temperature Range | -35 to 102 deg C |
