SKU: SS.POS22L.EU

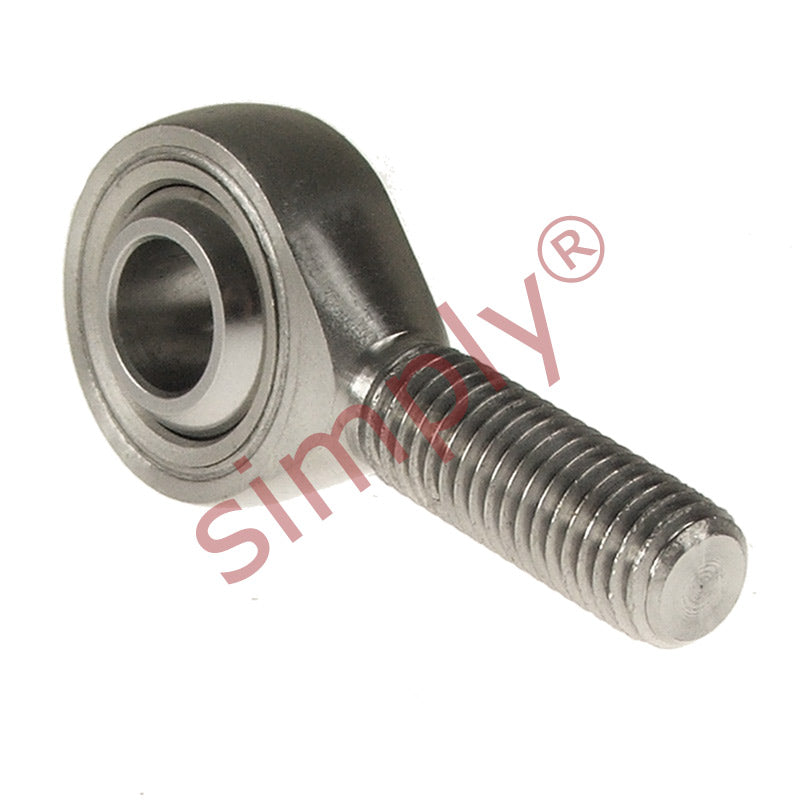

Budget SSPOS22L Left Hand Stainless Steel / PTFE Lined Plain Male Rod End 22mm Bore M22x1.5 Thread
Budget SSPOS22L Left Hand Stainless Steel / PTFE Lined Plain Male Rod End 22mm Bore M22x1.5 Thread
Out of stock
Description
Description
|
Stainless Steel Maintenance Free Male Rod End with PTFE Liner: LEFT hand thread male rod end consisting of AISI 420 Stainless Steel body with an AISI 440C Stainless Steel ball running in a PTFE maintenance free liner captive in an AISI 304 Stainless Steel ball mount. Benefits: Cost effective replacement bearing, sliding surfaces are steel against PTFE, maintenance free Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M22x1.5
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Inside Diameter:
- 22mm
- Material:
- PTFE Lined
Technical
Technical
| d | 22mm |
|---|---|
| B | 28mm |
| r1 | 0.6mm |
| C1 | 20mm |
| d1 max | 25.8mm |
| d2 | 50mm |
| d3 | M22x1.5 |
| h | 84mm |
| l1 | 51mm |
| l2 | 109mm |
| Ball diameter | 1-1/2 inch |
| Dynamic load Cr | 38.1 kN |
| Static load Cor | 42.6 kN |
| Max angle α | 15 |
| Weight | 0.435 kg |
