SKU: SM-UCP212-206D1-NTN

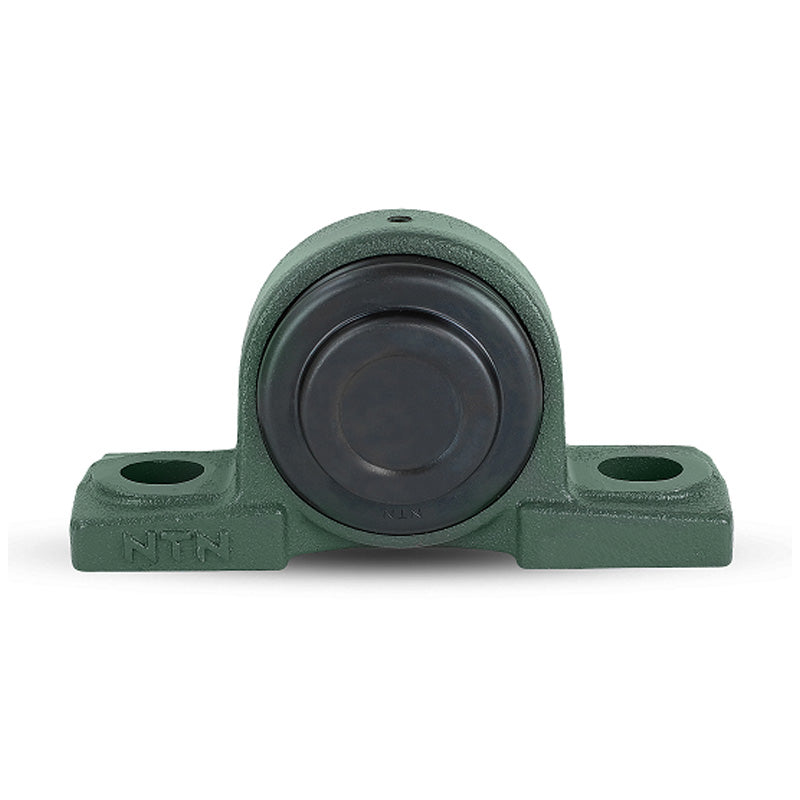

NTN SM-UCP212-206D1 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-3/8 inch Bore Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days
NTN SM-UCP212-206D1 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-3/8 inch Bore Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days
Out of stock
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 60.33mm = 2.375 (2-3/8) inch
- Style:
- UCP
- Bolt Hole Centres:
- 7-1/4 inch
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 2-3/8 inch |
| H | 2-3/4 inch |
| L | 9-1/2 inch |
| J | 7-1/4 inch |
| A | 2-3/4 inch |
| N | 25/32 inch |
| N<sub>1</sub> | 29/32 inch |
| H<sub>1</sub> | 31/32 inch |
| H<sub>2</sub> | 5-7/16 inch |
| L<sub>1</sub> | 2-3/4 inch |
| B | 2.563 inch |
| S | 1 inch |
| t<sub>1</sub> | 5/16 inch |
| A<sub>4</sub> | 4-1/32 inch |
| Fixing bolt | 5/8 inch |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 58 kN |
| Static load C<sub>0r</sub> | 36 kN |
| Fatigue load limit C<sub>u</sub> | 2.83 kN |
| --- | Unit information |
| Mass | 11 lbs |
