SKU: SM-UCFL212-205D1-NTN

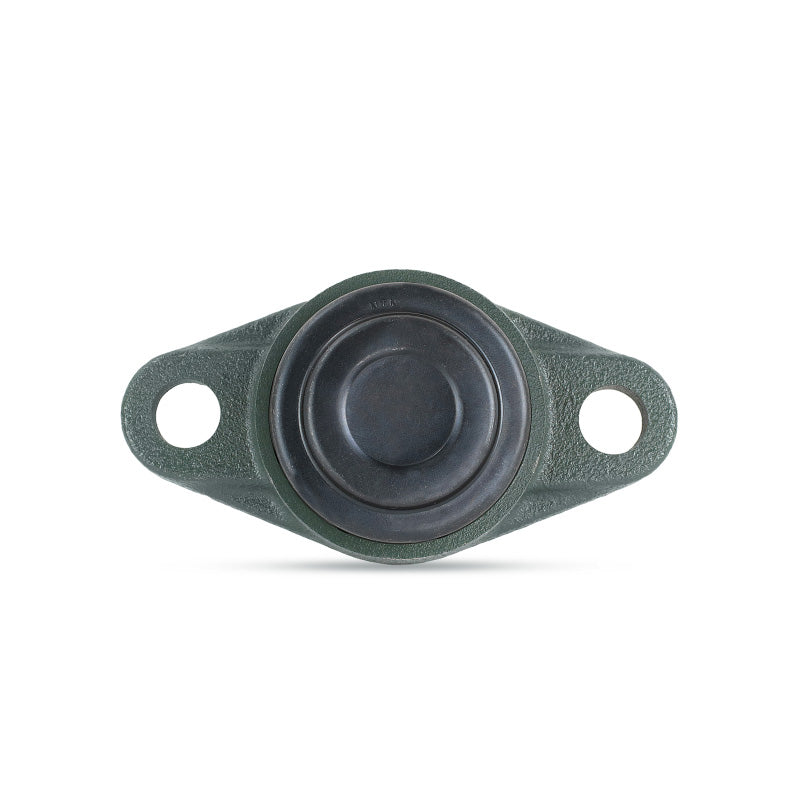

NTN SM-UCFL212-205D1 Imperial Two Bolt Oval Cast Iron Flange Housing with 2-5/16 inch Bore Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days
NTN SM-UCFL212-205D1 Imperial Two Bolt Oval Cast Iron Flange Housing with 2-5/16 inch Bore Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days
Out of stock
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 58.73mm = 2.312 (2-5/16) inch
- Style:
- UCFL
- Bolt Hole Centres:
- 7-61/64 inch
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 2-5/16 inch |
| H | 9-27/32 inch |
| J | 7-61/64 inch |
| A<sub>2</sub> | 1-9/64 inch |
| A<sub>1</sub> | 23/32 inch |
| A | 1-7/8 inch |
| N | 29/32 inch |
| L | 5-1/2 inch |
| B | 2.563 inch |
| S | 1 inch |
| t<sub>1</sub> | 5/16 inch |
| A<sub>4</sub> | 3-5/32 inch |
| Fixing bolt | 3/4 inch |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 58 kN |
| Static load C<sub>0r</sub> | 36 kN |
| Fatigue load limit C<sub>u</sub> | 2.83 kN |
| --- | Unit information |
| Mass | 8.8 lbs |
