SKU: SLFE2R-RHP

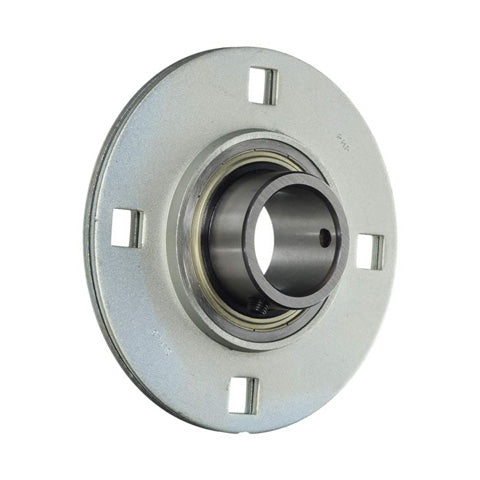

RHP SLFE2R 4 Bolt Round Pressed Steel Bearing Housing and 2 inch Bore Insert
Out of stock
Share this product
Description
|
RHP SLFE Series Round Pressed Steel Bearing Housings: Supplied with a full width insert these galvanized steel construction these housings are a simple economical housed bearing solution. Designed for light to medium duty applications they can be bolted to sheet metal frameworks or even timber if required. The supplied sealed bearing insert has grub screws for securing to the shaft. Once assembled the bearing remains fairly rigid in the housing. The inserts are also available separately. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Style:
- SLFE
- Pitch Circle Diameter:
- 127mm = 5 inch

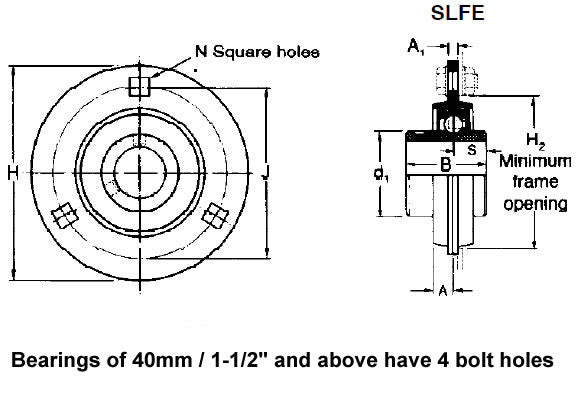

Technical
| Bore | 2 inch |
|---|---|
| H | 6.126 inch |
| H2 | 4.016 inch |
| J | 5 inch |
| N | 0.531 inch |
| A | 0.413 inch |
| A1 | 0.315 inch |
| B | 2.031 inch |
| B1 | 1.714 inch |
| B2 | 1.718 inch |
| B3 | 2.469 inch |
| s | 0.752 inch |
| s1 | 0.435 inch |
| s2 | 0.97 inch |
| d1 | 2.449 inch |
| d2 | 2.75 inch |
| Max radial housing load | 8450 N |
| Rec max speed | 1500 rpm |
| Weight | 1.8 kg |
| Casting group | 1050 |
