SKU: SLC50A-RHP

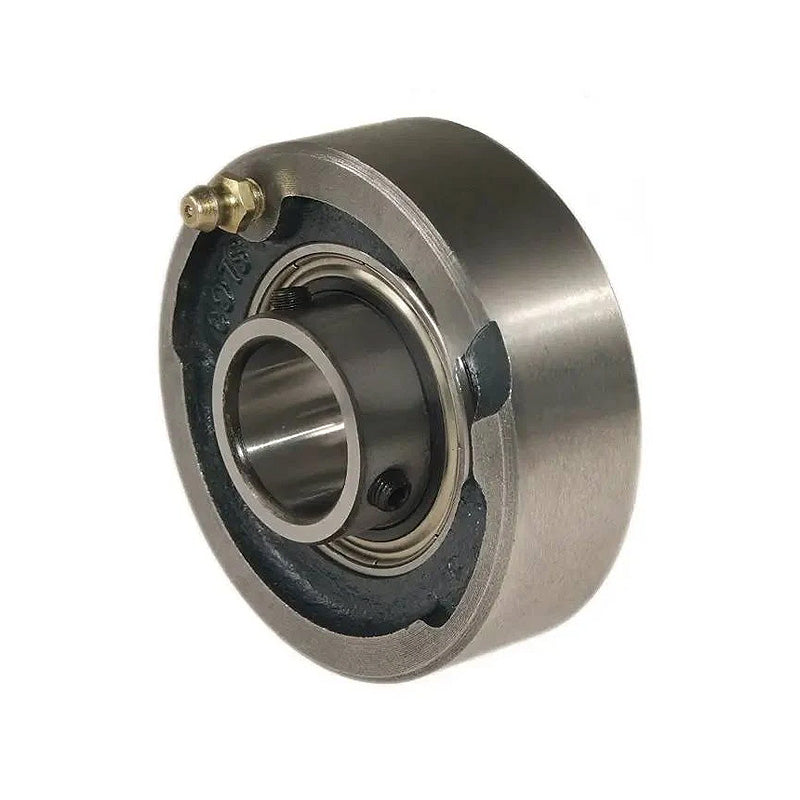

RHP SLC50A Cast Iron Cartridge Unit with 50mm Bore Insert 115.91mm Outside Diameter
RHP SLC50A Cast Iron Cartridge Unit with 50mm Bore Insert 115.91mm Outside Diameter
Out of stock
Share this product
Description
Description
|
RHP SLC A Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 115.91mm
- Style:
- SLC
Technical
Technical
| Bore | 50mm |
|---|---|
| L | 115.913mm |
| A | 37.31mm |
| A1 | 51.18mm |
| A2 | 51.28mm |
| A3 | 56.72mm |
| B | 51.59mm |
| B1 | 43.54mm |
| B2 | 43.64mm |
| B3 | 62.7mm |
| s | 19.1mm |
| s1 | 11.05mm |
| s2 | 24.65mm |
| d1 | 62.2mm |
| d2 | 69.85mm |
| Dynamic load Cr | 35000 N |
| Static load Cor | 23200 N |
| Rec max speed | 3400 rpm |
| Weight | 2.3 kg |
| Insert | <a href="advanced_search_result.php?keywords=1250-50AG+insonly">1250-50AG Click Here</a> |
| Casting group | 8 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
