SKU: SLC45DEC-RHP

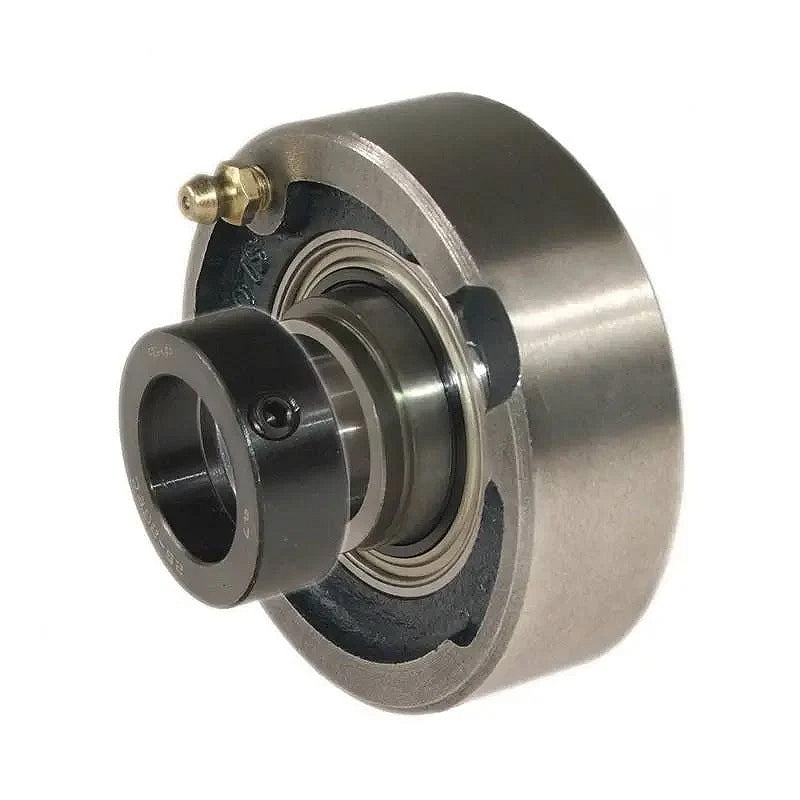

RHP SLC45DEC Cast Iron Cartridge Unit with 45mm Bore Insert 111.15mm Outside Diameter
RHP SLC45DEC Cast Iron Cartridge Unit with 45mm Bore Insert 111.15mm Outside Diameter
Out of stock
Share this product
Description
Description
|
RHP SLC DEC Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 111.15mm
- Style:
- SLC
Technical
Technical

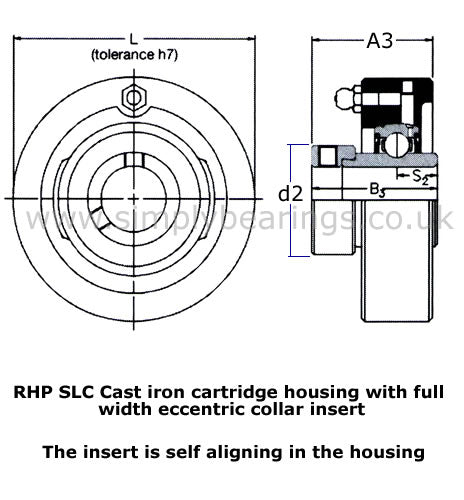

| Bore | 45mm |
|---|---|
| L | 111.15mm |
| A | 36.51mm |
| A3 | 53.16mm |
| B3 | 56.34mm |
| s2 | 21.46mm |
| d2 | 63.5mm |
| Dynamic load Cr | 32500 N |
| Static load Cor | 20500 N |
| Rec max speed | 3700 rpm |
| Weight | 2.1 kg |
| Insert | <a href="advanced_search_result.php?keywords=1045-45DECG+insonly">1045-45DECG Click Here</a> |
| Casting group | 7 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
