SKU: SL70DEC-RHP

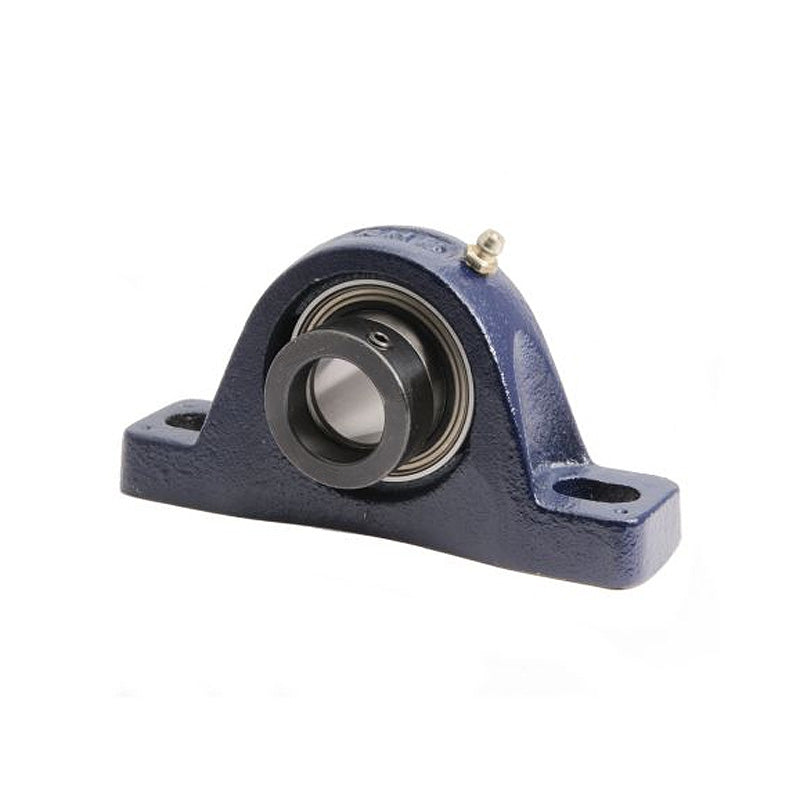

RHP SL70DEC Two Bolt Cast Iron Pillow Block and 70mm Bore Eccentric Collar Full Width Insert

RHP SL70DEC Two Bolt Cast Iron Pillow Block and 70mm Bore Eccentric Collar Full Width Insert

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

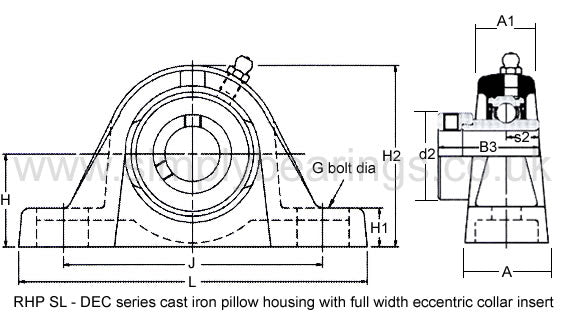

Bore 70mm
L 11.748 inch
H 3.25 inch
H1 1.374 inch
H2 6.563 inch
J max 9.563 inch
J min 8.689 inch
G 0.75 inch
A 3.252 inch
A1 2.189 inch
B3 3.611 inch
s2 1.471 inch
d2 4 inch
Dynamic load Cr 66000 N
Static load Cor 49500 N
Rec max speed 2300 rpm
Insert <a href="advanced_search_result.php?keywords=1075-70DECG+insonly">1075-70DECG Click Here</a>
Casting group 11
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
