SKU: SIL40ES-ISB

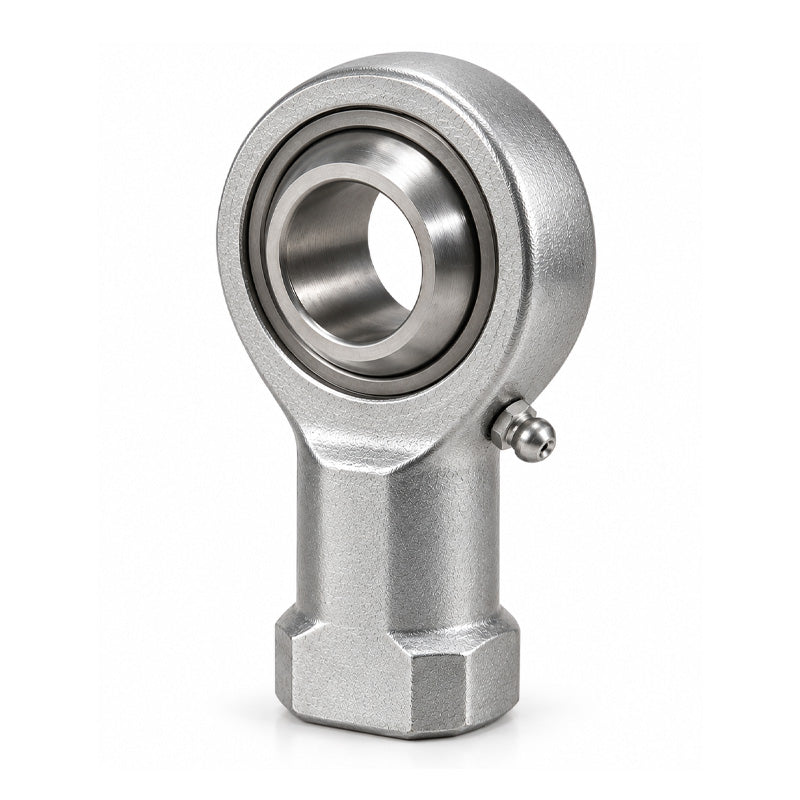

ISB SIL40ES Left Hand Maintenance Required Steel/Steel Plain Female Rod End M40 Thread
ISB SIL40ES Left Hand Maintenance Required Steel/Steel Plain Female Rod End M40 Thread
Equivalent to: SIL40ES
Out of stock
Share this product
Description
Description
SI - SA Series Rod End Bearings:: This series is constructed with C 45 improved and forged steel; the surfaces are protected from external corrosive agents, thanks to a galvanised zinc covering. They are available with internal and external threading, to the right and the left and they are provided with greasers or bores for lubrication.
- Brand / Quality:
- ISB-Good Quality
- Thread Size:
- M39x3
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Bore:
- 40
- Inside Diameter:
- 40
- Material:
- Steel/Steel
Technical
Technical
| d | 40mm |
|---|---|
| d1 | 45mm |
| d2 | 92mm |
| d3 | M 39x3mm |
| d4 | 52mm |
| d5 | 65mm |
| dk | 53mm |
| B | 28mm |
| C1 | 23mm |
| D | 62mm |
| h1 | 142mm |
| W | 55mm |
| I3 | 67mm |
| I4 | 188mm |
| I5 | 18mm |
| I7 | 48mm |
| α | 7° |
| r 1s min | 0.6Nmax Min -1 |
| Dynamic C | 100KN |
| Static C0 | 180KN |
| Weight | 2Kg |
