SKU: SG042AR0

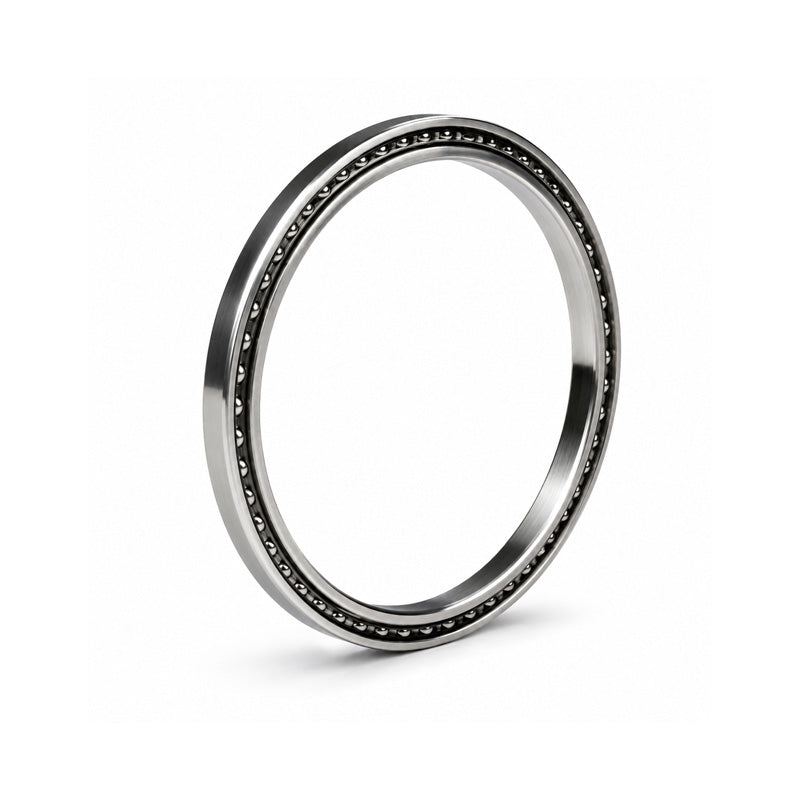

Silverthin SG042AR0 Thin Section Angular Contact Ball Bearing 4.25x6.25x1 inch - Allow 7-10 Days
Silverthin SG042AR0 Thin Section Angular Contact Ball Bearing 4.25x6.25x1 inch - Allow 7-10 Days
Equivalent to: KG042AR0
Out of stock
Description
Description
|
Silverthin Thin Section Angular Contact Ball Bearings: These bearings have a large bore to outside diameter ratio and are designed to accommodate axial loads. These bearing also support moment loads and reversing axial loads when used in pairs. These bearings also work well in radial or combined radial-thrust applications. Made from 52100 chrome steel and contains a brass circular pocket separator. Benefits: Compact, lightweight, accommodates radial and axial loads, large bore to diameter ratio |
- Brand / Quality:
- Silverthin - High Quality
- Inside Diameter:
- 107.95mm = 4-1/4 inch
- Outside Diameter:
- 158.75mm = 6-1/4 inch
- Width:
- 25.4mm = 1 inch
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| B | 4.25 inch |
|---|---|
| D | 6.25 inch |
| Width | 1 inch |
| L1 | 4.992 inch |
| L2 | 5.508 inch |
| L3 | 5.741 inch |
| Static Radial Load | 44.282 kN |
| Dynamic Radial Load | 21.707 kN |
| Static Thrust Load | 127.811 kN |
| Dynamic Thrust Load | 62.707 kN |
| Weight | 1.7236kg |
