SKU: SF2.5/8-RHP

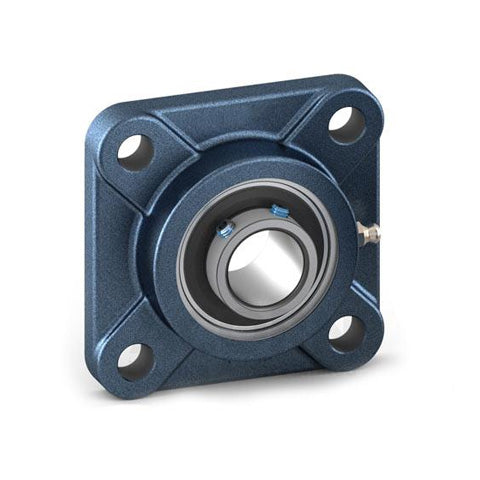

RHP SF2-5/8 Four Bolt Square Cast Iron Flange Housing and 2-5/8 inch Bore Grub Screw Full Width Insert
RHP SF2-5/8 Four Bolt Square Cast Iron Flange Housing and 2-5/8 inch Bore Grub Screw Full Width Insert
Out of stock
Share this product
Description
Description
|
RHP SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a sealed full width bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 66.68mm = 2.625 (2-5/8) inch
- Style:
- SF
- Bolt Hole Centres:
- 149.23mm = 5.875 (5-7/8) inch

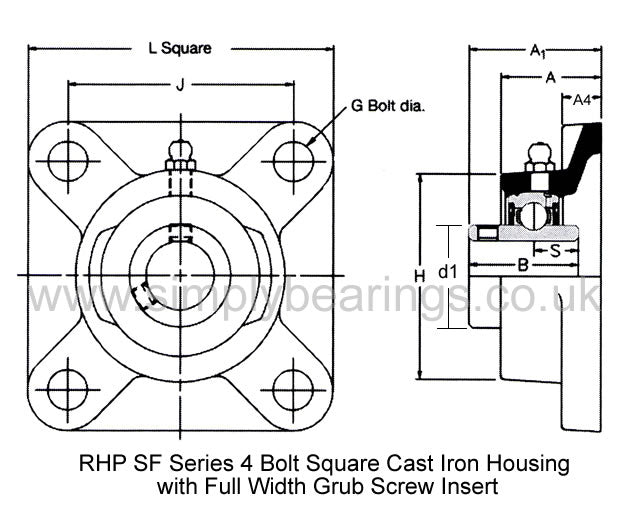

Technical
Technical
| Bore | 2-5/8 inch |
|---|---|
| L | 7.382 inch |
| H | 6.122 inch |
| J | 5.875 inch |
| G | 0.625 inch |
| A | 1.874 |
| A1 | 3.06 inch |
| A4 | 0.709 inch |
| B | 2.938 |
| s | 1.19 inch |
| d1 | 3.425 inch |
| Dynamic load Cr | 61000 N |
| Static Load Cor | 45000 N |
| Rec max speed | 2450 rpm |
| Weight | 6.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1070-2-5/8G+insonly">1070-2-5/8G Click Here</a> |
| Casting group | 11 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
