SKU: SF15/16DEC-RHP

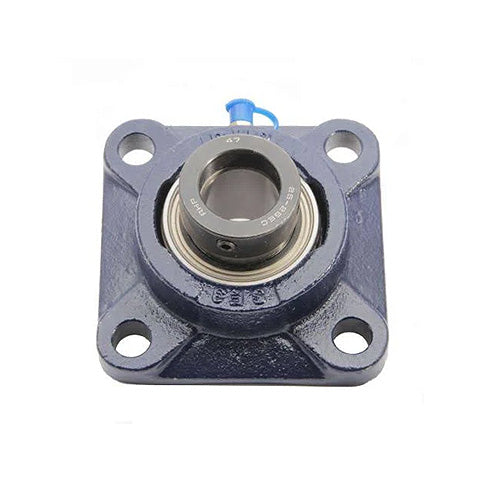

RHP SF15/16DEC Four Bolt Square Cast Iron Flange Housing and 15/16 inch Bore Eccentric Collar Full Width Insert
RHP SF15/16DEC Four Bolt Square Cast Iron Flange Housing and 15/16 inch Bore Eccentric Collar Full Width Insert
Out of stock
Share this product
Description
Description
|
RHP SF DEC Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a full width sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 23.81mm = 0.937 (15/16) inch
- Style:
- SF
- Bolt Hole Centres:
- 70.002mm = 2.756 inch

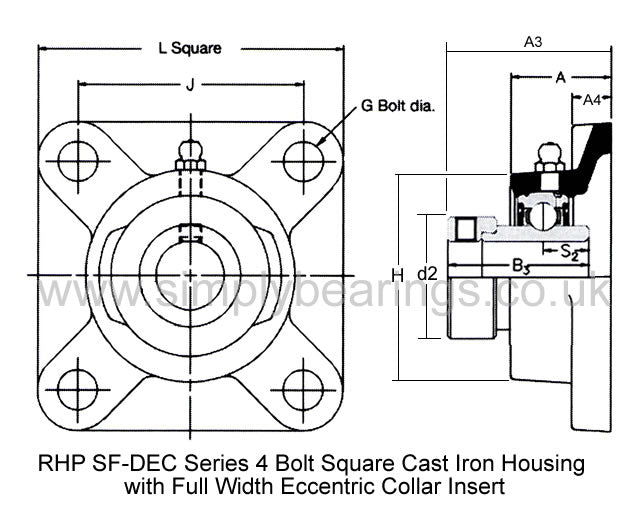

Technical
Technical
| Bore | 15/16 inch |
|---|---|
| L | 3.752 inch |
| H | 2.677 inch |
| J | 2.756 inch |
| G | 0.4375 inch |
| A | 1.126 inch |
| A3 | 1.809 inch |
| A4 | 0.437 inch |
| B3 | 1.748 inch |
| s2 | 0.689 inch |
| d2 | 1.5 inch |
| Dynamic load Cr | 14000 N |
| Static Load Cor | 7880 N |
| Rec max speed | 6250 rpm |
| Weight | 1 kg |
| Insert | <a href="advanced_search_result.php?keywords=1025-15/16DECG+insonly">1025-15/16DECG Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
