SKU: SF1.1/4AR-RHP

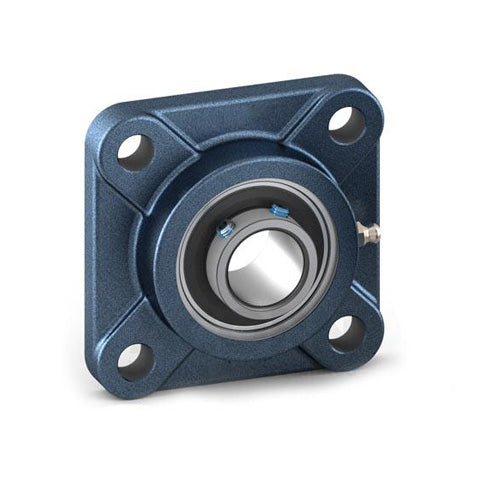

RHP SF1-1/4AR Four Bolt Square Cast Iron Flange Housing and 1-1/4 inch Bore Grub Screw Flat Back Insert

RHP SF1-1/4AR Four Bolt Square Cast Iron Flange Housing and 1-1/4 inch Bore Grub Screw Flat Back Insert

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 1-1/4 inch
L 4.252 inch
H 3.252 inch
J 3.248 inch
G 0.4375 inch
A 1.173
A1 1.662 inch
A4 0.5 inch
B1 1.229 inch
s1 0.356 inch
d1 1.575 inch
Dynamic load Cr 19500 N
Static Load Cor 11300 N
Rec max speed 5300 rpm
Weight 1.3 kg
Insert <a href="advanced_search_result.php?keywords=1230-1-1/4AG+insonly">1230-1-1/4AG Click Here</a>
Casting group 4
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
