SKU: SF047XP0

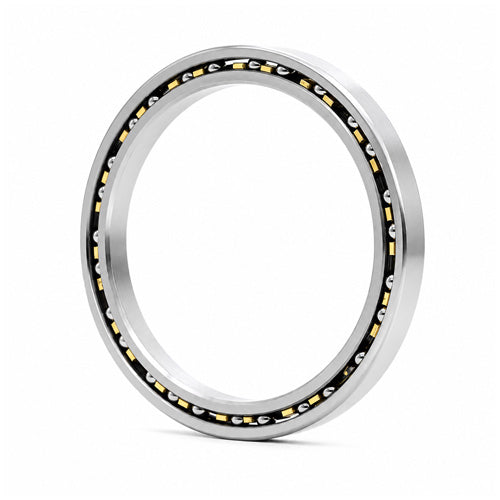

Silverthin SF047XP0 Thin Section Four Point Contact Ball Bearing 4.75x6.25x0.75 inch - Allow 7-10 Days
Silverthin SF047XP0 Thin Section Four Point Contact Ball Bearing 4.75x6.25x0.75 inch - Allow 7-10 Days
Equivalent to: KF047XP0 L18VA412 CSXF047 NBX12019 FPXF412
Out of stock
Description
Description
|
Silverthin Thin Section Four-Point Contact Ball Bearings: These bearings have a large bore to outside diameter ratio and are designed with gothic arch raceways creating four contact points between the balls and the raceways. This design is excellent for moment loading and reversing axial loading. These bearings can be used for other light loading conditions but is not recommended for pure radial loads. Made from 52100 chrome steel and contains a brass snapover separator. Benefits: Compact, lightweight, ideal of moment loading, large bore to diameter ratio |
- Brand / Quality:
- Silverthin - High Quality
- Inside Diameter:
- 120.65mm = 4-3/4 inch
- Outside Diameter:
- 158.75mm = 6-1/4 inch
- Width:
- 19.05mm = 3/4 inch
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| B | 4.75 inch |
|---|---|
| D | 6.25 inch |
| Width | 0.75 inch |
| L1 | 5.305 inch |
| L2 | 5.695 inch |
| L3 | 5.865 inch |
| Static Radial Load | 27.646 kN |
| Dynamic Radial Load | 13.402 kN |
| Static Thrust Load | 69.041 kN |
| Dynamic Thrust Load | 33.508 kN |
| Static Moment Load | 75.962 kN |
| Dynamic Moment Load | 36.849 kN |
| Weight | 0.9979kg |
