SKU: SF045AR0

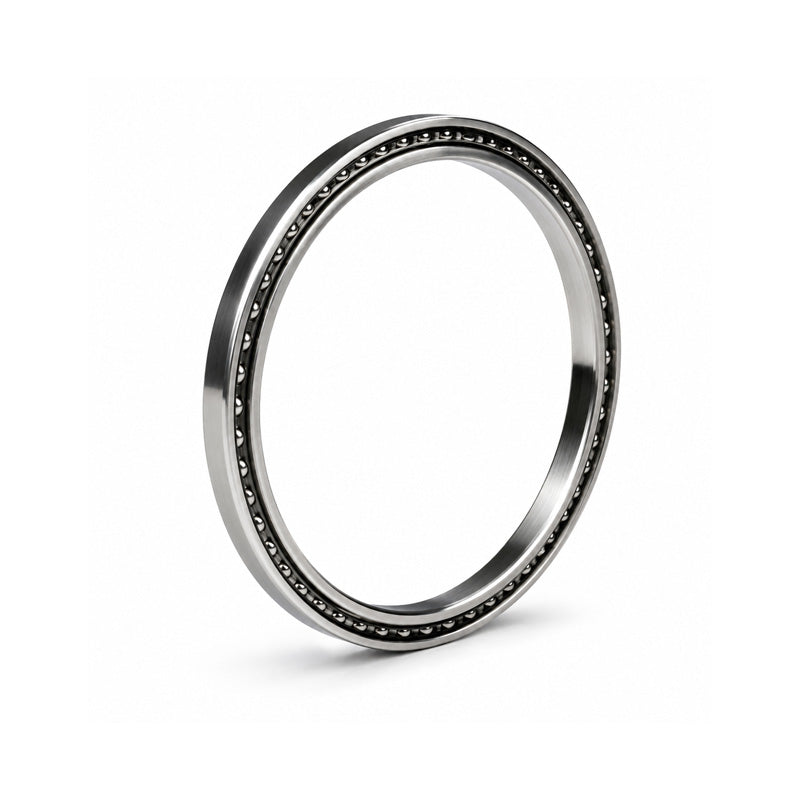

Silverthin SF045AR0 Thin Section Angular Contact Ball Bearing 4.5x6x0.75 inch - Allow 7-10 Days
Silverthin SF045AR0 Thin Section Angular Contact Ball Bearing 4.5x6x0.75 inch - Allow 7-10 Days
Equivalent to: KF045AR0 CSEF045 NBA11409 FPAF408
Out of stock
Description
Description
|
Silverthin Thin Section Angular Contact Ball Bearings: These bearings have a large bore to outside diameter ratio and are designed to accommodate axial loads. These bearing also support moment loads and reversing axial loads when used in pairs. These bearings also work well in radial or combined radial-thrust applications. Made from 52100 chrome steel and contains a brass circular pocket separator. Benefits: Compact, lightweight, accommodates radial and axial loads, large bore to diameter ratio |
- Brand / Quality:
- Silverthin - High Quality
- Inside Diameter:
- 114.3mm = 4-1/2 inch
- Outside Diameter:
- 152.4mm = 6 inch
- Width:
- 19.05mm = 3/4 inch
- Seals / Shields:
- None
- Clearance:
- * Standard

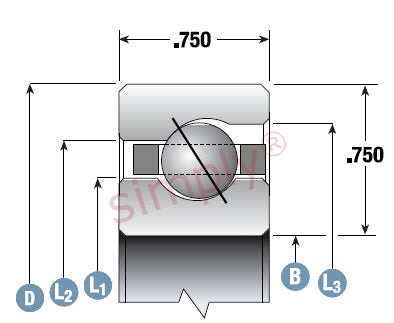

Technical
Technical
| B | 4.5 inch |
|---|---|
| D | 6 inch |
| Width | 0.75 inch |
| L1 | 5.06 inch |
| L2 | 5.445 inch |
| L3 | 5.615 inch |
| Static Radial Load | 31.56 kN |
| Dynamic Radial Load | 13.981 kN |
| Static Thrust Load | 91.02 kN |
| Dynamic Thrust Load | 40.256 kN |
| Weight | 0.9525kg |
